Megger DET4TC2
| Attribute | Value |
|---|---|
| Measurement Range | 0.01 Ω to 20 kΩ |
| Test Current | Up to 20 mA (automatic selection) |
| Test Frequency | 128 Hz, 111 Hz, 94 Hz (selectable) |
| Accuracy | ±2% ±1 digit |
| Display | Backlit LCD with graphical display |
| Memory Storage | Up to 99 test results stored internally |
| Power Supply | 6 x AA alkaline batteries or external DC supply |
| Protection Rating | IP54 (dust and splash resistant) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 1.8 kg (3.97 lbs) including batteries |
Megger DET4TC2 Options:
- DET4TC2 - 1000-365 - DET4TC2 + clamps (MCC CLAMP for ART testing, MVC CLAMP for stakeless testing, field calibration check)
- DET4TC2 - 1012-521 - DET4TC2 + ETK50C (professional kit with clamps, 2x 50m, 2x 30m cable reels with spikes and tape measure in weatherproof holdall)
- DET4TC2 - 5410-429 - Replacement hard carry case
- DET4TC2 - 1000-434 - Replacement calibration check PCB (two-clamp measurements)
- DET4TC2 - 6220-804 - Replacement ground test stakes (x2) for included kit (200 mm, 8 mm dia)
- DET4TC2 - 6220-806 - Replacement ground test leads (x4) for included kit (15 m, 10 m, 10 m, 3 m)
- DET4TC2 - 1010-844 - Replacement cable reel (50 m, red + spike)
- DET4TC2 - 1010-848 - Replacement cable reel (30 m, black + spike)
- DET4TC2 - 1010-842 - Replacement cable reel (50 m, yellow + spike)
- DET4TC2 - 1010-849 - Replacement cable reel (30 m, green + spike)
- DET4TC2 - 1010-516 - MCC CLAMP (for ART testing)
- DET4TC2 - 1010-518 - MVC CLAMP (adds stakeless testing)
- DET4TC2 - 1000-435 - Calibration check box (25 Ohm)
- DET4TC2 - 1012-511 - Right angle terminal adaptor set
- DET4TC2 - 6220-850 - Black crocodile clip (1)
- DET4TC2 - 21500-072 - "Getting down to earth" Megger guide to earth ground testing
- DET4TC2 - 1001-858 - Leadset
| Model | DET4TC2 |
|---|

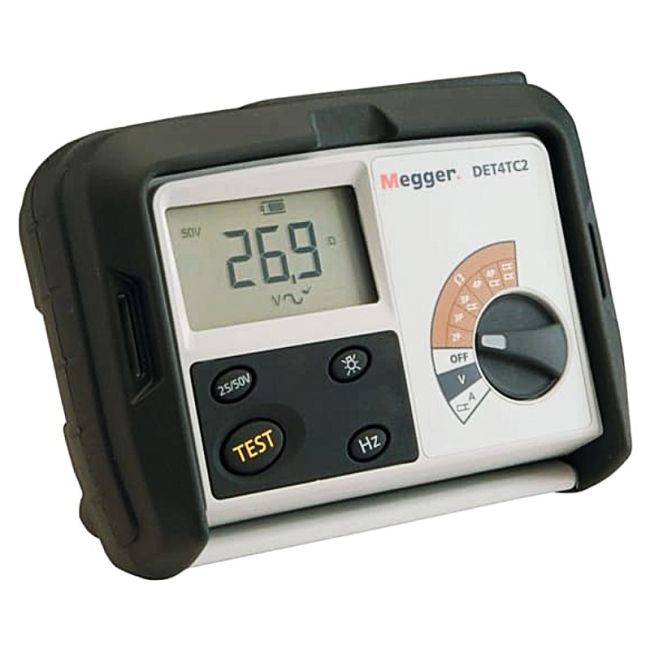

The Megger DET4TC2 4 Terminal Ground Resistance Tester delivers a full suite of ground stake and soil resistivity testing functions, including 2, 3, and 4 pole methods, ART, stakeless testing, leakage current, and ground noise voltage measurement. With selectable test frequencies, the device rejects up to 40 V peak-to-peak interference, ensuring precise results in challenging environments. Its IP54 rating and wide operating temperature range make it ideal for demanding outdoor use.
User-friendly design features a rotary selector switch, one-press test button, and a high-contrast display for clear visibility in all conditions. Optional ICLAMP and VCLAMP accessories extend functionality to electrode testing without disconnection, leakage current measurements as low as 0.5 mA, and true stakeless operation where stakes cannot be driven.
Testwall can supply the used Megger DET4TC2 4 Terminal Ground Resistance Tester, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger DET4TC2 4 Terminal Ground Resistance Tester.
