Megger DLRO200-115
| Attribute | Value |
|---|---|
| Test Current | 10 A to 200 A |
| Resistance Measurement Range | 0.1 µΩ to 99.999 mΩ |
| Measurement Accuracy | ±0.2% of reading ±0.2% of full scale |
| Power Supply Input Voltage | 115 V AC, 50/60 Hz |
| Power Consumption | Up to 3000 W |
| Display | Backlit LCD with graphical display |
| Memory Storage | Up to 4000 test results stored internally |
| Communication Interface | USB, RS-232, Bluetooth (optional) |
| Operating Temperature Range | -15°C to +50°C (5°F to 122°F) |
| Protection Rating | IP54 |
Megger DLRO200-115 Options:
- DLRO200-115 - DLRO200-115 E - High Current Digital Low Resistance Ohmmeter 115 V (English QWERTY keyboard)
- DLRO200-115 - 6220-755 - 16 ft. (5m) Lead set in bag comprising: 2 x 50mm² current leads with clamps and 2 x potential leads with clips
- DLRO200-115 - 6220-757 - 49 ft. (15m) Lead set comprising 2 x 95mm² current leads with clamps and 2 x potential leads with clips
- DLRO200-115 - 6220-756 - 33 ft. (10m) Lead set comprising 2 x 70mm² current leads with clamps and 2 x potential leads with clips
| Model | DLRO200-115 |
|---|

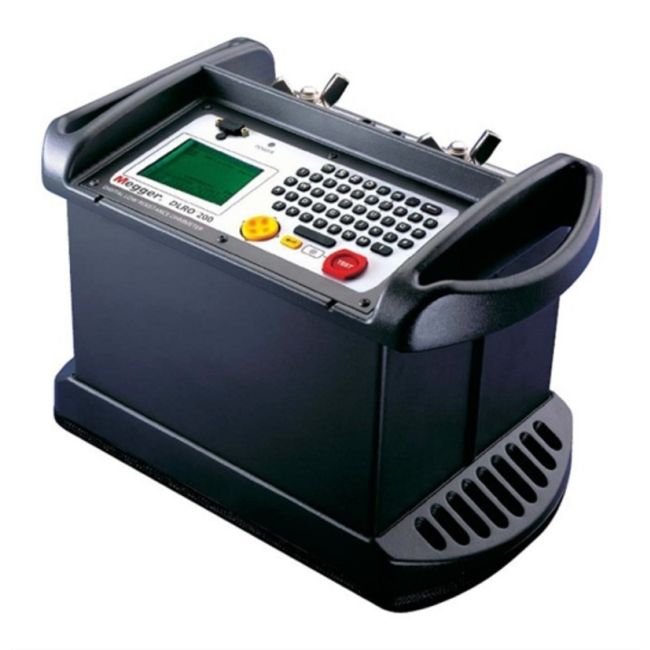

The Megger DLRO200-115 is a compact and powerful micro-ohmmeter designed for measuring low resistances from 0.1 µΩ to 1 Ω with test currents up to 200 A DC. Equipped with advanced filtering, it delivers a smooth current output, eliminating magnetic transients and ensuring reliable testing of breakers, isolators, and busbar joints.
With onboard memory for 300 results, RS232 connectivity, and PowerDB compatibility, this instrument supports efficient data management. Lightweight at under 32 lbs (15 kg) and IP54 rated, it is suitable for use in workshops, production floors, or field environments.
Testwall can supply the used Megger DLRO200-115, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger DLRO200-115.
