Megger MRCT
| Attribute | Value |
|---|---|
| Test Voltage Output | Up to 2000 V AC |
| Current Measurement Range | 0 to 200 A |
| Frequency Range | 15 Hz to 400 Hz |
| Ratio Measurement Range | 1:1 to 5000:1 |
| Ratio Accuracy | ±0.1% |
| Power Supply | 85 to 265 V AC, 50/60 Hz |
| Display | Color touchscreen LCD |
| Interface / Connectivity | USB and RS-232 |
| Operating Temperature Range | -10°C to +50°C (14°F to 122°F) |
| Standards Compliance | IEC 60044-1, IEEE C57.12.90 |
Megger MRCT Options:
- MRCT - S - Testing Method: Standard Method 2 kV AC
- MRCT - D - Testing Method: Standard Method and DC Technique for knee points up to 30 kV
- MRCT - 0 - Voltage Transformer Testing: No Voltage Transformer Testing
- MRCT - 1 - Voltage Transformer Testing: Basic Inductive Voltage Transformer Testing
- MRCT - 2 - Voltage Transformer Testing: Basic Inductive and Basic Capacitive Voltage Transformer Testing
- MRCT - 3 - Voltage Transformer Testing: Advanced Inductive Voltage Transformer Testing
- MRCT - 4 - Voltage Transformer Testing: Advanced Inductive and Advanced Capacitive Voltage Transformer Testing
- MRCT - C - Multi Function Testing Option: CT testing only
- MRCT - R - Multi Function Testing Option: Relay testing and CT testing
- MRCT - N - Integrated Insulation Test: No integrated insulation resistance test
- MRCT - R - Integrated Insulation Test: Integrated insulation resistance test
- MRCT - 0 - Internal Software Option: Without
- MRCT - 1 - Internal Software Option: IEC61850 GOOSE message Enabled
- MRCT - 2 - Internal Software Option: Enhanced RTMS Enabled
- MRCT - 3 - Internal Software Option: IEC61850 GOOSE & Enhanced RTMS Enabled
- MRCT - 1 - Overlay Option: ANSI Overlay
- MRCT - 3 - Overlay Option: IEC Overlay
- MRCT - 4 - Overlay Option: Russian Overlay
- MRCT - 0 - Onboard Display/Enclosure: No onboard display w/small enclosure
- MRCT - 2 - Onboard Display/Enclosure: Onboard display w/long enclosure
- MRCT - N - Test Leads Option: Without leads
- MRCT - S - Test Leads Option: Standard leads
- MRCT - K - Test Leads Option: Kelvin leads
- MRCT - L - Test Leads Option: Long leads
- MRCT - 1 - Bluetooth Option: With Bluetooth
- MRCT - 0 - Bluetooth Option: Without Bluetooth
- MRCT - A - Power Cord Option: North American power cord
- MRCT - I - Power Cord Option: International power cord
- MRCT - E - Power Cord Option: Continental Europe power cord
- MRCT - U - Power Cord Option: United Kingdom power cord
| Model | MRCT |
|---|

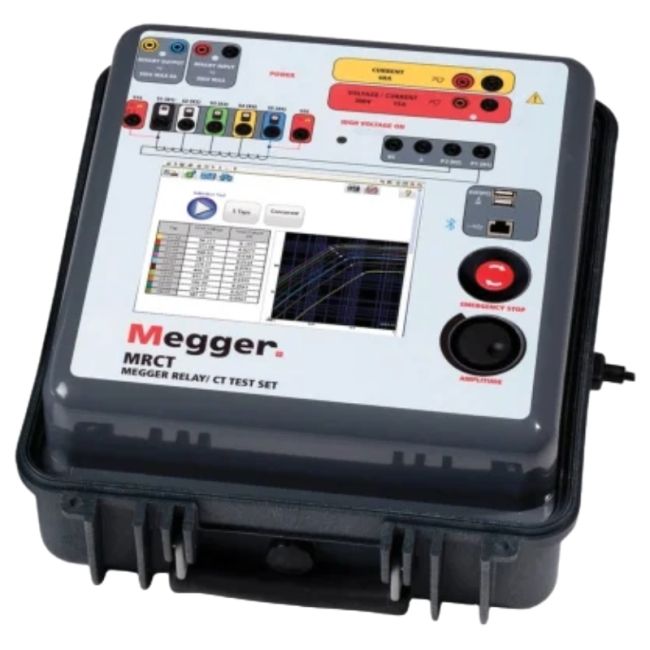

The Megger MRCT Relay and Current Transformer Tester provides advanced testing for CTs with functions such as ratio, polarity, saturation, winding resistance, insulation, demagnetization, and phase deviation. It automatically calculates ratio errors, knee points, and saturation curves for efficient and accurate results.
With control via STVI touch interface or laptop using PowerDB software, the MRCT supports in-situ testing of CTs within transformers, oil circuit breakers, and switchgear. Its upgradeable design ensures adaptability to evolving testing requirements.
Testwall can supply the used Megger MRCT, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger MRCT.
