Megger TTR310E
| Attribute | Value |
|---|---|
| Measurement Range | 0.8:1 to 10,000:1 |
| Accuracy | ±0.1% of reading |
| Test Voltage | 8 V AC (nominal) |
| Power Supply | Internal rechargeable battery or 115/230 V AC, 50/60 Hz |
| Display | Backlit LCD |
| Memory Storage | Up to 3,000 test records stored internally |
| Interface / Connectivity | USB and Bluetooth for data transfer |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Protection Rating | IP54 (dust and splash resistant) |
| Weight | Approximately 4.2 kg (9.3 lbs) with carrying case |
Megger TTR310E Options:
- TTR310E - -47 - 230V operation fuse and 50Hz calibration (for accurate phase deviation)
- TTR310E - -45 - 120V fuse rating and 50Hz calibration
- TTR310E - 1001-390 - TTR printer package, 120V 60Hz (optional thermal spool-paper printer)
- TTR310E - 1001-401 - TTR printer package, 230V 50Hz (optional thermal spool-paper printer)
| Model | TTR310E |
|---|

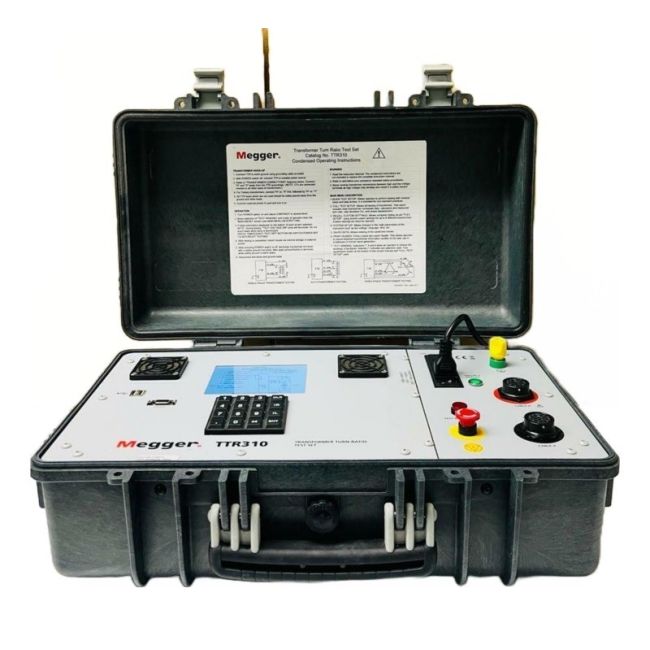

The Megger TTR310E is a three-phase transformer turns ratio test set designed for precise measurement of turns ratio, excitation current, phase angle deviation, and ratio error in power, instrument, and distribution transformers. Equipped with a transflective color display, it ensures readability in all lighting conditions. The unit features full automation, remote control operation via PowerDB LITE, and internal storage capability with output options through RS232, Ethernet, or USB ports.
Its advanced design simplifies testing of complex three-phase transformers with multiple tap changers and bushing CTs, reducing test time significantly. Operators can print results in the field via an optional thermal printer, without needing an external computer.
Testwall can supply the used Megger TTR310E Three-Phase Transformer Turns Ratio Test Set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger TTR310E Three-Phase Transformer Turns Ratio Test Set.
