MOHR CT100 Options:
- CT100 - CT100 - BNC test port (self-grounding)
- CT100 - CT100S - SMA test port
- CT100 - CT100HF - SMA test port (high frequency)
- CT100 - CT100-AC-KBD - Small Form-Factor Keyboard
- CT100 - CT100-AC-B270E - External Battery Pack (2700 mAh)
- CT100 - CT100-AC-CH - Hard Carrying Case
- CT100 - CT100-AK-SMA - SMA Adapter Kit
- CT100 - CT100-AK-BNC - BNC Adapter Kit
- CT100 - CT100-IK-BNC - Impedance Matching Kit
- CT100 - CT100-AC-I5075-BNC - Impedance Matching Adapter 50 Ω to 75 Ω
- CT100 - CT100-AC-I5093-BNC - Impedance Matching Adapter 50 Ω to 93 Ω
- CT100 - CT100-AC-I50125-BNC - Impedance Matching Adapter 50 Ω to 125 Ω
| Model | CT100 |
|---|

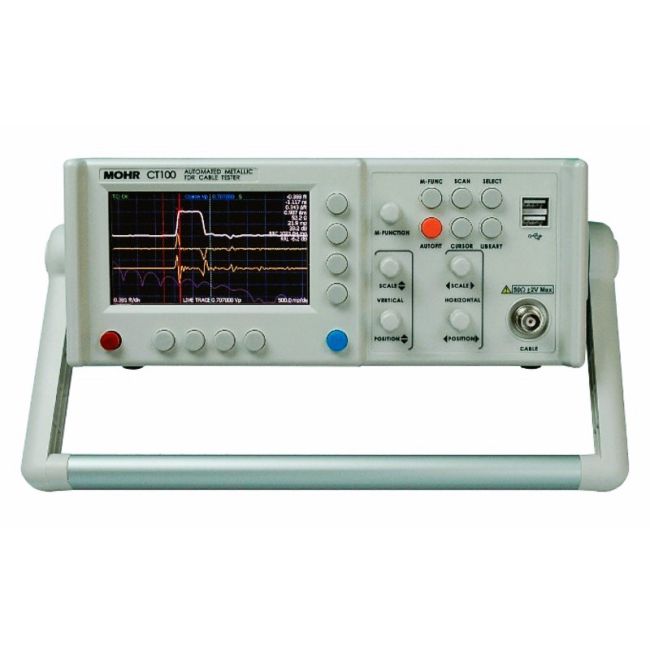

The Mohr CT100 is a high-resolution portable metallic TDR designed for advanced testing of coaxial and twisted-pair cables in RF, microwave, and digital systems. It offers 100 ps risetime, 16-bit sampling resolution, 5–250 kHz sequential sampling rate, and 500 fps frame rate, delivering 8–10x sharper spatial resolution and up to 1000x better Distance-to-Fault (DTF) accuracy compared to traditional TDR instruments. Equipped with multi-GHz bandwidth, Ethernet, and USB connectivity, it stores thousands of traces with powerful analysis tools including FFT, derivatives, and filtering on a bright 4.3” TFT-LCD display.
Lightweight at 4.7 lb with 8-hour battery life, the Mohr CT100 integrates AutoFit™, dual cursors, real-time LAN/WAN streaming, and a configuration library for fast, repeatable cable testing. It is ideal for detecting impedance mismatches, connector faults, and cable degradation before critical system failures.
Testwall can supply the used Mohr CT100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Mohr CT100.
