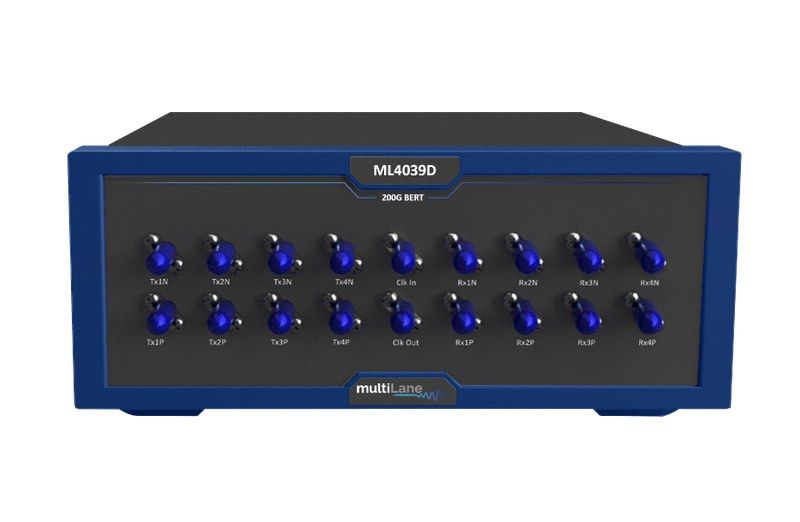

MultiLane ML4039D
4-channel 200G BERT, NRZ/PAM4 up to 29.5 GBaud, high output amplitude
4 Channels
NRZ and PAM4 Modulation
Up to 29.5 GBaud (28 GBaud PAM4 / 28 Gb/s NRZ) Data Rate
KR4, KP4 (post-FEC BER per channel) FEC Decoding
PRBS13Q, SSPRQ, PRBS31Q, user-defined Patterns
| Attribute | Value |
|---|---|
| Channels | 4 |
| Modulation | NRZ and PAM4 |
| Data Rate | Up to 29.5 GBaud (28 GBaud PAM4 / 28 Gb/s NRZ) |
| FEC Decoding | KR4, KP4 (post-FEC BER per channel) |
| Patterns | PRBS13Q, SSPRQ, PRBS31Q, user-defined |
| Custom Pattern Length | Up to 32 kb |
The ML4039D is a 4-channel 200G bit error rate tester, operating as 4-channel PAM4 at 28 GBaud or NRZ at 28 Gb/s with high output amplitude. Receivers support FEC decoding (KR4, KP4) with per-channel post-FEC BER, MSB/LSB BER, eye histogram and SNR over time.
Transmitters provide IEEE/OIF patterns (PRBS13Q, SSPRQ, PRBS31Q) and a custom pattern of up to 32 kb; used for 100G/200G transceiver and link testing. The ML4079D is the 8-channel equivalent.
Testwall can supply the used MultiLane ML4039D, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the MultiLane ML4039D.
