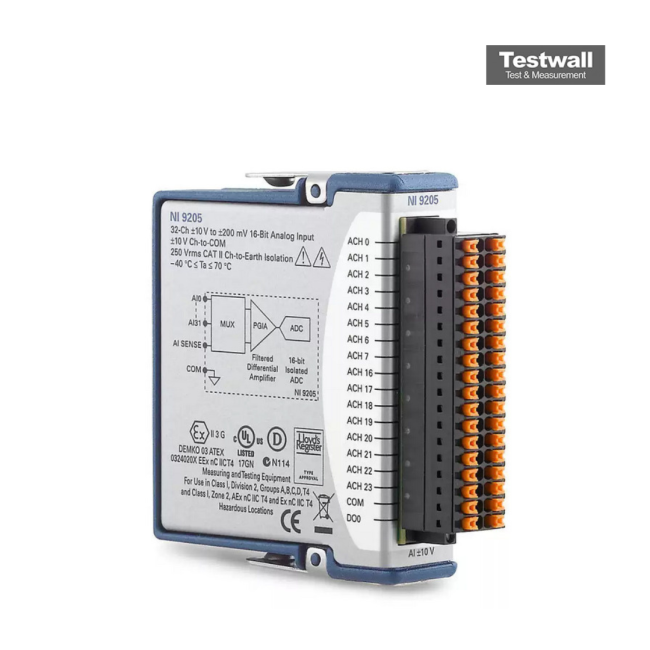

National Instruments NI-9205
| Attribute | Value |
|---|---|
| Number of Analog Input Channels | 32 single-ended / 16 differential |
| ADC Resolution | 16-bit |
| Maximum Sampling Rate | 250 kS/s aggregate |
| Input Voltage Range | ±200 mV, ±1 V, ±5 V, ±10 V (software-selectable) |
| Input Impedance | 100 GΩ in parallel with 100 pF |
| Overvoltage Protection | ±30 V |
| Common Mode Voltage Range | ±10.4 V |
| Operating Temperature Range | -40 °C to 70 °C |
| Bus Interface / Compatibility | NI CompactDAQ / CompactRIO (C Series) |
| Isolation Voltage | 60 VDC, Measurement Category I (no channel-to-channel isolation) |
| Model | NI-9205 |
|---|
The National Instruments NI-9205 is a 32-channel C Series voltage input module designed for precise voltage measurement applications. It supports simultaneous sampling with 16-bit resolution and offers a wide input range suitable for various industrial and laboratory environments. The module is compatible with NI CompactDAQ and CompactRIO platforms, ensuring flexible integration and robust data acquisition performance.
This module is ideal for applications requiring multiple analog voltage inputs with accurate and reliable data capture. Its specifications enable easy setup and seamless operation in automated testing and monitoring systems.
Testwall can supply the used National Instruments NI-9205, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9205.
