National Instruments NI-9924
| Attribute | Value |
|---|---|
| Compatible Hardware | NI CompactDAQ, NI CompactRIO controllers and chassis |
| Connector Type | D-Sub 37-pin female connector |
| Number of Pins | 37 |
| Shell Size | Size 2 (standard D-Sub) |
| Screw Terminal Compatibility | Provides screw terminal access for NI C Series modules with 37-pin D-Sub connectors |
| Wire Gauge Range | 16 AWG to 28 AWG |
| Operating Temperature Range | -40 °C to 70 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Relative Humidity (Non-Condensing) | 10% to 90% |
| Dimensions (L x W x H) | Approximately 101.60 mm x 76.20 mm x 38.10 mm |
| Model | NI-9924 |
|---|

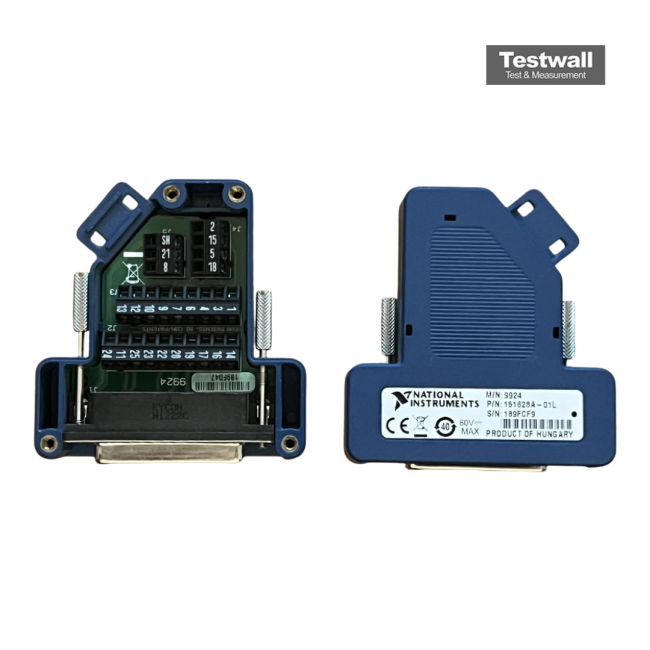

The National Instruments NI-9924 is a 25-pin D-sub to screw-terminal connector block designed for robust signal interfacing in modular measurement systems. It provides reliable connections through screw terminals, enabling secure wiring and easy integration with NI CompactDAQ and CompactRIO systems.
This connector block facilitates flexible, high-density wiring for sensor and signal inputs, ensuring precise data acquisition and system configuration.
Testwall supplies the used National Instruments NI-9924, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9924.
