National Instruments NI-9236
| Attribute | Value |
|---|---|
| Number of Channels | 8 |
| Measurement Type | Quarter-Bridge Strain Gauge |
| ADC Resolution | 24-bit |
| Sample Rate (per channel) | Up to 10,000 S/s |
| Bridge Completion | Internal 350 Ω quarter-bridge completion resistors |
| Excitation Voltage | 3.3 V (internal) |
| Input Range | ±25 mV/V |
| Operating Temperature Range | -40 °C to 70 °C |
| Bus Interface | NI C Series (compatible with cDAQ and cRIO chassis) |
| Isolation Voltage | 60 VDC, Continuous (channel-to-bus) |
| Model | NI-9236 |
|---|

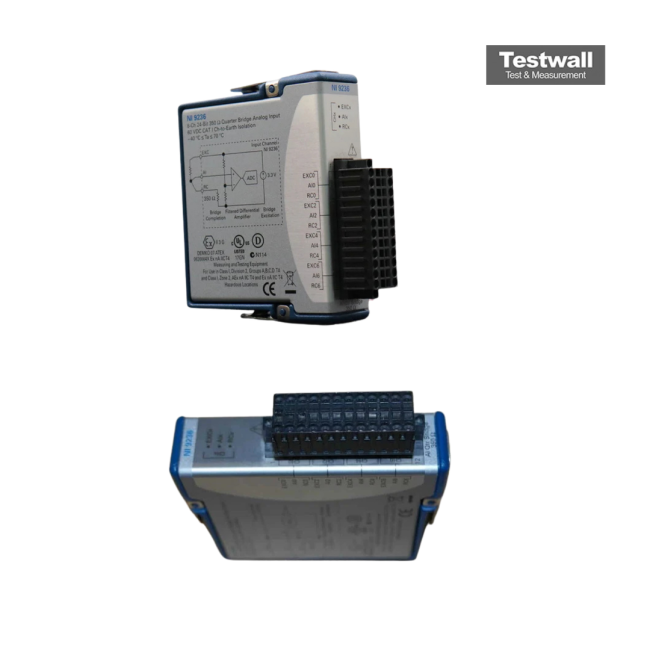

The National Instruments NI-9236 is an 8-channel C Series Quarter Bridge Input Module designed for precise strain and force measurements. It supports quarter-bridge configurations with high-resolution delta-sigma ADCs, offering excellent accuracy and low noise performance. The module integrates seamlessly with NI CompactDAQ and CompactRIO platforms for reliable data acquisition.
This module is ideal for structural testing, material fatigue analysis, and vibration monitoring, providing robust measurement capabilities in compact form factor. Its wide input range and built-in sensor excitation ensure versatile application across various industrial environments.
Testwall can supply the used National Instruments NI-9236, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9236.
