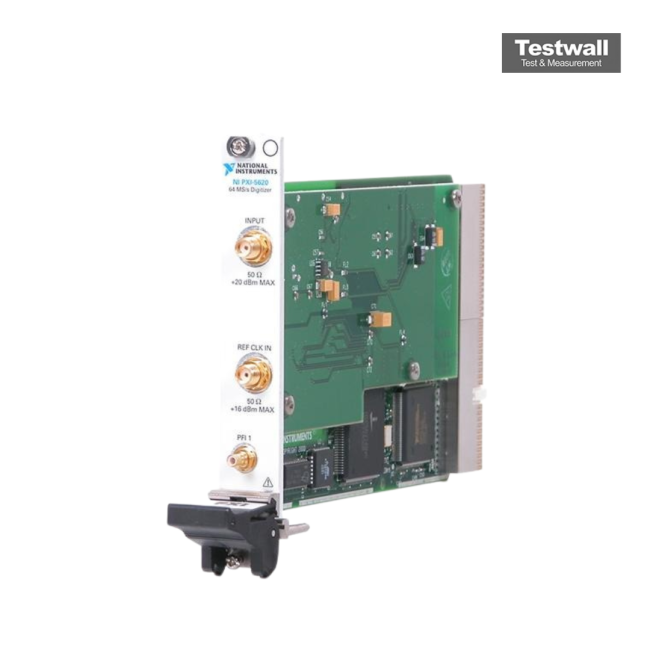

National Instruments PXI-5620
| Attribute | Value |
|---|---|
| Sample Rate | 64 MS/s |
| Resolution | 14-bit |
| Input Bandwidth | 25 MHz |
| Number of Channels | 2 simultaneous analog input channels |
| Input Impedance | 50 Ω or 1 MΩ |
| Input Voltage Range | ±1 V to ±5 V (software selectable) |
| Onboard Memory | 256 MB |
| Bus Interface | PXI (32-bit, 33 MHz) |
| Operating System Compatibility | Windows XP/Vista/7, compatible with NI-SCOPE driver software |
| Form Factor | PXI 3U, 1-slot module |
| Model | PXI-5620 |
|---|
The National Instruments PXI-5620 is a 64 MS/s, 14-bit single-channel Frequency-Domain Digitizer with 10 kHz to 36 MHz (-3 dB) bandwidth and an 80 dB Spurious-Free Dynamic Range. It features 8 MS onboard memory with DDC and 16 MS without DDC, SMA connectors for input and reference clock, and an SMB connector for external digital triggers.
Equipped with a digital signal processing chip, it allows narrowband zoom within the Nyquist band, supports external or software triggers, and enables flexible buffer size configurations.
Testwall can supply the used National Instruments PXI-5620, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-5620.
