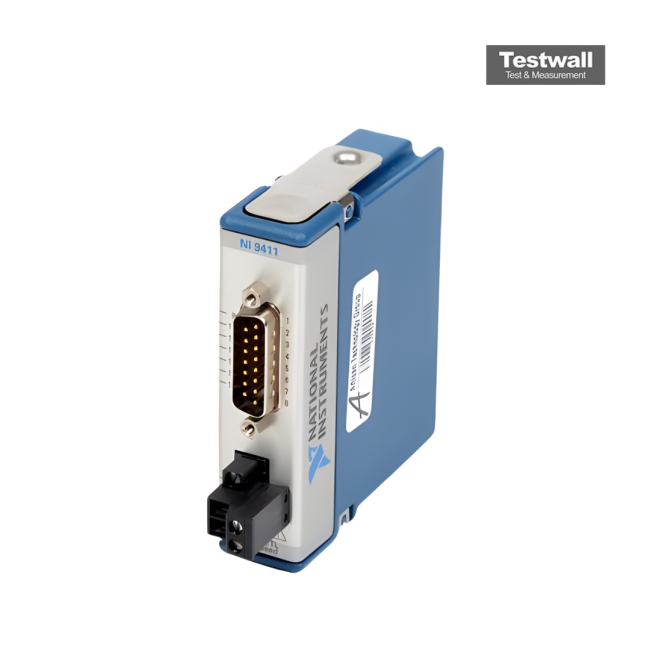

National Instruments NI-9411
| Attribute | Value |
|---|---|
| Number of Channels | 6 digital input channels |
| Input Voltage Range | 5 V to 24 V (single-ended), ±5 V to ±24 V (differential) |
| Maximum Input Frequency | 4 MHz |
| Input Type | Differential or single-ended (software selectable) |
| Logic Levels | Compatible with TTL, 5 V, 12 V, and 24 V logic signals |
| Minimum Pulse Width | 125 ns |
| Isolation Voltage | 60 VDC, CAT I (channel-to-bus isolation) |
| Operating Temperature Range | -40 °C to 70 °C |
| Bus Interface | NI C Series (compatible with CompactDAQ and CompactRIO chassis) |
| Power Consumption | 715 mW maximum |
| Model | NI-9411 |
|---|
The National Instruments NI-9411 features 6 digital input channels with voltage ranges from 5 to 24V, supporting both differential and single-ended configurations. It provides a fast 500ns input response time, ensuring precise and reliable signal acquisition for complex data acquisition tasks.
This module is ideal for monitoring digital signals in industrial and laboratory environments, supporting flexible connection options and accurate data capture at high speed.
Testwall can supply the used National Instruments NI-9411, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9411.
