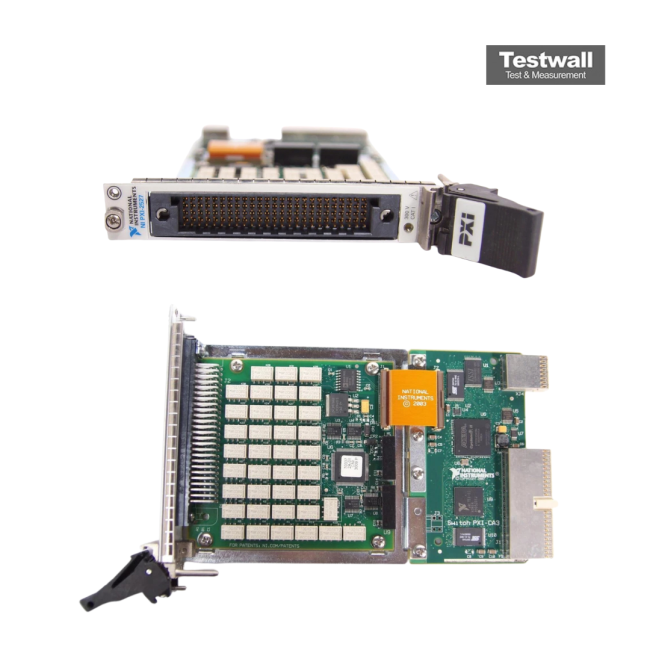

National Instruments PXI-2527
| Attribute | Value |
|---|---|
| Number of Channels | 32 two-wire channels (configurable as 16 four-wire channels) |
| Topology | 32×1 multiplexer (two-wire) or 16×1 multiplexer (four-wire) |
| Maximum Switching Voltage | 300 V DC or 300 V AC RMS |
| Maximum Switching Current | 1 A per channel |
| Maximum Switching Power | 30 W per channel |
| Relay Type | Electromechanical (armature) relays |
| Relay Contact Life | Up to 1,000,000 operations (at rated load) |
| Bandwidth (-3 dB) | Up to 10 MHz |
| Form Factor | PXI 3U, single-slot module |
| Operating Temperature | 0 °C to 55 °C |
| Model | PXI-2527 |
|---|
The National Instruments PXI-2527 is a high-density 32-channel multiplexer switch module designed for PXI systems, enabling efficient signal routing for automated test equipment. It supports multiple configurations, including 1-wire and 2-wire modes, with low on-resistance and high switching speed for precise measurement applications. This module is ideal for scalable switching architectures, ensuring optimal performance in demanding testing environments.
Engineered for automated testing, the PXI-2527 allows flexible signal routing between instruments and devices under test. It ensures accuracy in multi-channel setups and simplifies complex switching tasks.
Testwall can supply the used National Instruments PXI-2527 PXI 32ch Multiplexer Switch Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-2527 PXI 32ch Multiplexer Switch Module.
