National Instruments PXI-2546
| Attribute | Value |
|---|---|
| Number of Channels | 4 Independent DPDT (Dual-Pole Dual-Throw) Switches |
| Switch Topology | Dual-Pole Dual-Throw (DPDT) |
| Maximum Switching Voltage | 300 V DC / 250 V AC (RMS) |
| Maximum Switching Current | 2 A |
| Maximum Switching Power | 60 W |
| Relay Type | Electromechanical Relay |
| Typical Relay Lifetime | 100,000,000 Mechanical Operations |
| Maximum Operate Time | 5 ms |
| Form Factor | PXI (3U, 1-Slot) |
| Operating Temperature Range | 0 °C to 55 °C |
| Model | PXI-2546 |
|---|

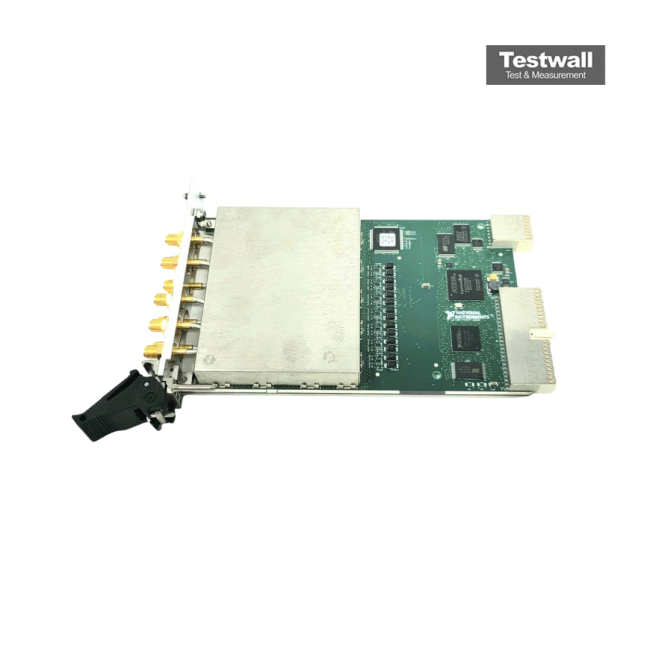

The National Instruments PXI-2546 PXI 2.7 GHz Dual 4x1 RF Multiplexer Switch Module is designed for precise RF signal routing in PXI systems, offering dual 4x1 multiplexers capable of switching signals up to 2.7 GHz. It features low insertion loss, high isolation, and excellent repeatability, ensuring reliable performance in automated test setups. The module supports flexible configurations for single-ended or differential routing, ideal for RF device characterization and system-level testing.
Optimized for high-frequency applications, this PXI switch module delivers fast switching speeds and robust mechanical endurance, making it suitable for telecommunications, aerospace, and research environments.
Testwall can supply the used National Instruments PXI-2546 PXI 2.7 GHz Dual 4x1 RF Multiplexer Switch Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-2546 PXI 2.7 GHz Dual 4x1 RF Multiplexer Switch Module.
