National Instruments PXI-5660
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 2.7 GHz |
| Resolution Bandwidth (RBW) | 10 Hz to 1 MHz |
| Dynamic Range | 100 dB |
| Displayed Average Noise Level (DANL) | -155 dBm/Hz (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (typical) |
| Number of PXI Slots Required | 3 slots |
| Real-Time Bandwidth | 20 MHz |
| RF Connector Type | SMA (female) |
| Model | PXI-5660 |
|---|

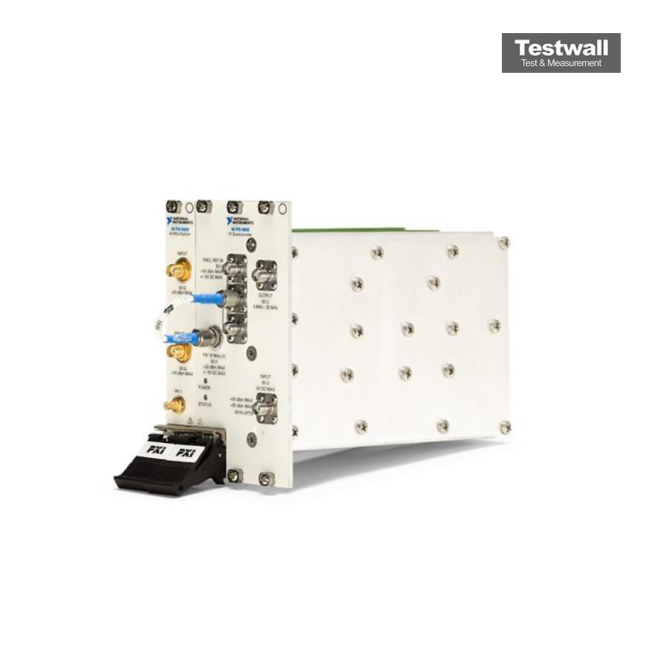

The National Instruments PXI-5660 2.7GHz RF Signal Analyzer is a modular RF signal analyzer capable of covering frequencies up to 2.7GHz. It integrates a downconverter, digitizer, and local oscillator in a PXI form factor, delivering precise measurements for a wide range of RF applications. Its compact architecture ensures low phase noise and high dynamic range performance.
Ideal for telecommunications, radar, and wireless testing, the PXI-5660 offers seamless integration with PXI systems and software tools for automated measurements and analysis.
Testwall can supply the used National Instruments PXI-5660 2.7GHz RF Signal Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-5660 2.7GHz RF Signal Analyzer.
