NH Research 9200-4912
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 20 A |
| Output Power | 12 kW |
| Input Voltage | 208/480 V AC, 3-Phase |
| Input Frequency | 47 – 63 Hz |
| Efficiency | Up to 92% |
| Cooling Method | Forced Air Cooling |
| Communication Interface | GPIB, RS-232, Analog |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
NH Research 9200-4912 Options:
- 9200-4912 - 36-2 - 6 Channels @ 12kW each, 72kW Maximum Test Power, 120V, 1200A, Two Cabinets (56"W x 31"D x 72"H)
| Model | 9200-4912 |
|---|

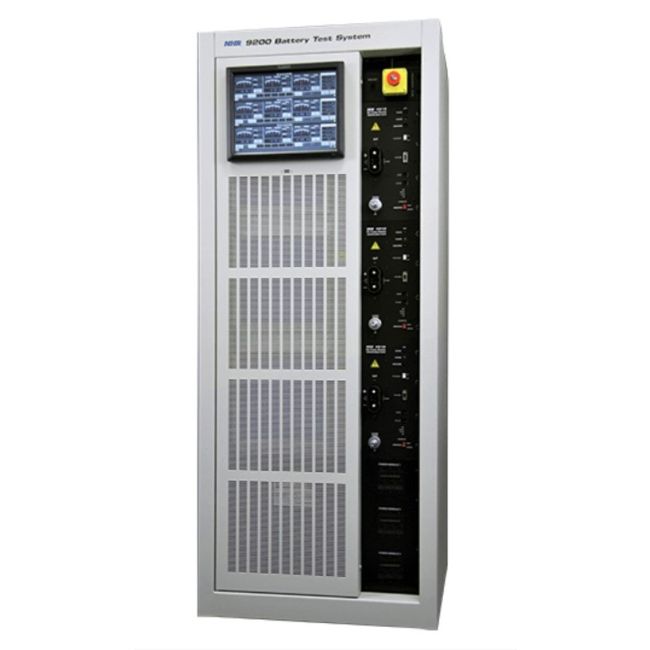

The NH Research 9200-4912 Battery Test System delivers advanced functionality for automated characterization, power cycling, and life-cycle testing of battery modules and packs. With expandable power from 12 to 252 kW, bi-directional DC loads (40, 120, 600 V), and 87% discharge efficiency, it supports charge, discharge, standby, and battery emulation. High precision digital measurements, custom waveform generation, and rapid transition times ensure accurate, versatile testing across applications.
Offering multiple safety layers, synchronous control for up to 12 channels, and flexible programming through Touch-Panel, LAN, or LabVIEW, the NHR 9200-4912 enables precise test automation. It supports CV, CC, CP, CR modes with up to 1000-step profiles and timing from microseconds to days.
Testwall can supply the used NH Research 9200-4912, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9200-4912.
