NH Research 9410-96
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 96 A |
| Output Power | Up to 57.6 kW |
| Number of Channels | Single Channel |
| Operating Modes | Constant Voltage (CV), Constant Current (CC), Constant Power (CP) |
| Input Voltage | 208/480 V AC, Three-Phase |
| Communication Interfaces | IEEE-488 (GPIB), RS-232, Ethernet (optional) |
| Programmability | Fully programmable via front panel and remote interfaces |
| Cooling Method | Forced Air Cooling |
| Form Factor | Rack Mountable |
NH Research 9410-96 Options:
- 9410-96 - HV - High Voltage Output (400V L-N option)
| Model | 9410-96 |
|---|

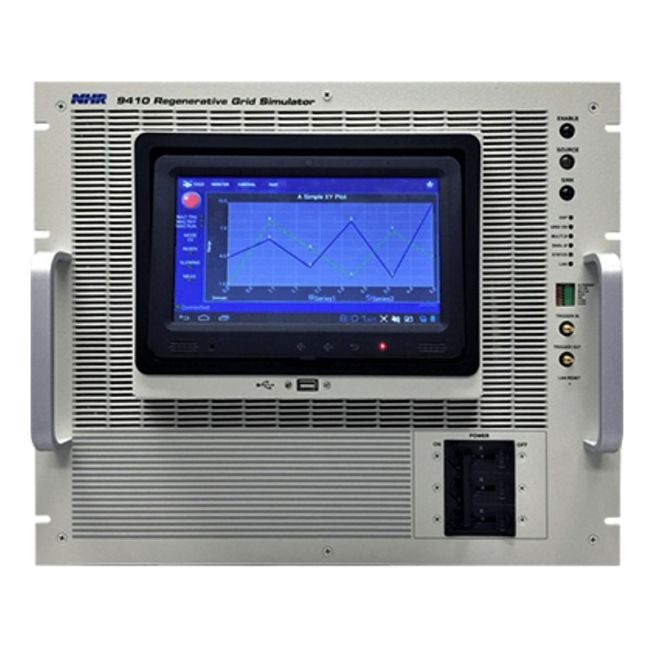

The NH Research 9410-96 Regenerative Grid Simulator delivers up to 96kW and 192kVA with full 4-quadrant AC source capability. It supports DC, single, split, and three-phase operation with programmable voltage, frequency, and custom wave-shapes. Equipped with high-resolution waveform capture, a 125k sample/sec digitizer, and a 9” touch interface, it is designed for precise inverter, UPS, and AC device testing.
Its scalable modular design enables flexible configuration and expansion with additional 12kW power modules. Per-phase control allows advanced analysis of harmonics, transients, and power disturbances, ideal for laboratory, development, and production testing environments.
Testwall can supply the used NH Research 9410-96 Regenerative Grid Simulator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9410-96 Regenerative Grid Simulator.
