NH Research 9510-100
| Attribute | Value |
|---|---|
| Output Power | 100 W |
| Output Voltage Range | 0 – 60 VDC |
| Output Current Range | 0 – 10 A |
| Input Voltage | 85 – 265 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Efficiency | Up to 90% |
| Regulation Mode | Constant Voltage (CV) / Constant Current (CC) |
| Interface / Control | GPIB, RS-232, USB |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Benchtop, Half-Rack |
NH Research 9510-100 Options:
- 9510-100 - 9510-50 - 50kW Regenerative Grid Simulator Module
- 9510-100 - 9510-75 - 75kW Regenerative Grid Simulator Module
- 9510-100 - 9510-200 - 200kW Regenerative Grid Simulator (2 x 100kW parallel)
- 9510-100 - 9510-300 - 300kW Regenerative Grid Simulator (3 x 100kW parallel)
- 9510-100 - 9510-400 - 400kW Regenerative Grid Simulator (4 x 100kW parallel)
- 9510-100 - 9510-500 - 500kW Regenerative Grid Simulator (5 x 100kW parallel)
- 9510-100 - 9510-1000 - 1000kW Regenerative Grid Simulator (10 x 100kW parallel)
- 9510-100 - 9510-1200 - 1200kW Regenerative Grid Simulator (12 x 100kW parallel)
- 9510-100 - AC Load Option - Modules configured as Regenerative AC/DC Grid Simulator or 4-Q AC Load
| Model | 9510-100 |
|---|

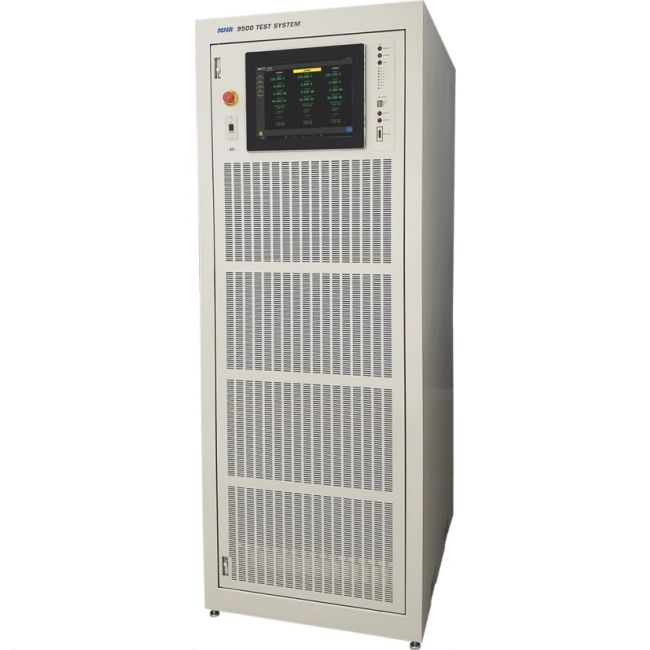

The NH Research 9510-100 Regenerative Grid Simulator delivers unmatched versatility with programmable frequency from 30Hz to 120Hz, AC/DC/AC+DC output, and support for single, split, or 3-phase modes. It includes a built-in power amplifier mode for PHIL applications, making it highly suitable for research and compliance testing of high-power grid-tied systems worldwide.
This simulator reproduces power line disturbances like LVRT test patterns, harmonics, and transients using macros and user-defined waveforms. It also functions as a power analyzer, measuring true power, reactive power, apparent power, crest factor, and more with an internal 125kSample/second digitizer.
Testwall can supply the used NH Research 9510-100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9510-100.
