Noisecom UFX7110
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 1 GHz |
| Output Power | -50 dBm to +10 dBm (adjustable) |
| Noise Type | Additive White Gaussian Noise (AWGN) |
| Noise Figure | Typically 7 dB |
| Output Impedance | 50 Ohms |
| Output Connector | SMA Female |
| Power Supply | +15 VDC, 500 mA |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Form Factor | Benchtop / Rack-Mountable Module |
Noisecom UFX7110 Options:
- UFX7110 - U7opt01 - N female output connector
- UFX7110 - U7opt02 - BNC female output connector
- UFX7110 - U7opt03 - 0 to 127.9 dB noise attenuator in 0.1 dB steps instead of 127 dB in 1 dB steps
- UFX7110 - U7opt04 - Switch elements, 2 X SP6T for 4 subband filters, 1 thrupath, 1 termination (filters are optional)
- UFX7110 - U7opt06 - 75 ohm output impedance (6 dB loss in the noise path and 12 dB loss in the signal path)
- UFX7110 - U7opt07 - Combiner for input signal (6 dB loss in noise and signal paths)
- UFX7110 - U7opt08 - Double output terminals (switched)
- UFX7110 - U7opt09 - Special configuration
- UFX7110 - U7opt10 - Line power 230 VAC, 50 Hz
- UFX7110 - U7opt11 - RS-232C, RS-422, RS-423, in addition to standard IEEE-488 interface
- UFX7110 - U7opt12 - 0 to 127 dB signal attenuator in 1 dB steps
- UFX7110 - U7opt13 - 0 to 127.9 dB signal attenuator in 0.1 dB steps
- UFX7110 - U7opt14 - Special frequency range (consult factory)
| Model | UFX7110 |
|---|

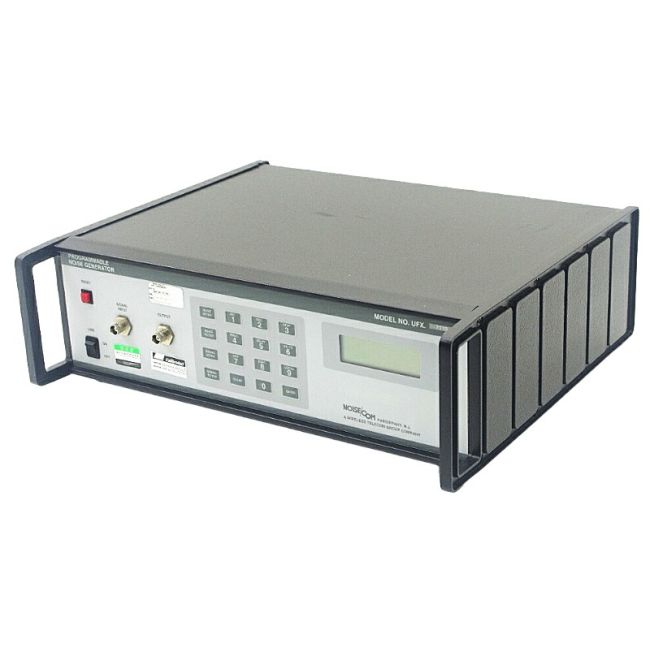

The Noisecom UFX7110 Programmable Noise Generator is designed to deliver precise electrical noise signals across a 100 Hz to 1.5 GHz frequency range. It integrates an amplified noise source optimized for flat output and Gaussian amplitude distribution. Users can adjust output power levels from 0 to 127 dB in 1 dB or optional 0.1 dB steps, ensuring flexible performance for varied test requirements.
The UFX7110 features a user-friendly interface with dedicated control keys and a 4x20 character LCD for real-time status monitoring. Parameters such as noise attenuator, filters, and step size can be controlled directly on the front panel, remotely via IEEE-488, or through automated program commands.
Testwall can supply the used Noisecom UFX7110, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Noisecom UFX7110.
