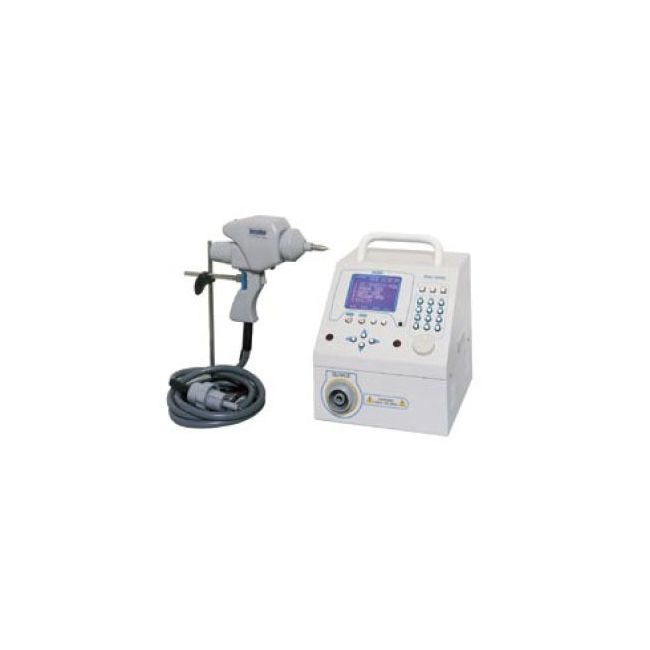

NoiseKen ESS-2000
Electrostatic Discharge Gun
Up to 4 kV (peak) Output Voltage Range
Up to 2000 A (peak) Output Current Range
Less than 1 ns Pulse Rise Time
Adjustable, 0.7 ns to 10 ns Pulse Width
Up to 10 kHz Repetition Rate
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4 kV (peak) |
| Output Current Range | Up to 2000 A (peak) |
| Pulse Rise Time | Less than 1 ns |
| Pulse Width | Adjustable, 0.7 ns to 10 ns |
| Repetition Rate | Up to 10 kHz |
| Output Impedance | 50 Ω |
| Applicable Standards | IEC 61000-4-4 (EFT/Burst), IEC 61000-4-2 (ESD) |
| Power Supply Requirements | AC 100–240 V, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Interface / Control | GPIB / RS-232C remote control interface |
NoiseKen ESS-2000 Options:
- ESS-2000 - 07-00016A - Temperature/Humidity Sensor
- ESS-2000 - 01-00013A - Automatic ESD Eliminator
- ESS-2000 - 08-00006B - Wireless Remote Controller
- ESS-2000 - 03-00040A - Gun Holder
- ESS-2000 - 11-00008A - Warning Lamp
| Model | ESS-2000 |
|---|
Output waveforms prescribed by IEC 61000-4-2 are available. In addition, various waveforms can be generated by changing the discharge capacitor and discharge resistor. Since the charge/discharge capacitor, resistor and discharge relay are incorporated
