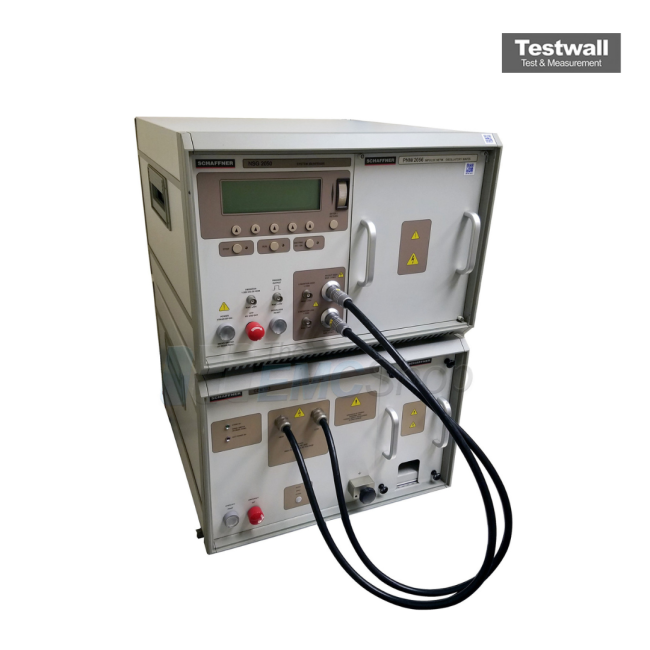

Schaffner NSG 500B/506C
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 6.6 kV peak |
| Pulse Rise Time | 5 ns (typical) |
| Pulse Width | 50 ns / 100 ns selectable |
| Repetition Rate | Up to 400 pulses per second |
| Source Impedance | 50 Ω |
| Applicable Standard | IEC 61000-4-4 (EFT/Burst) |
| Coupling/Decoupling Network | Integrated CDN for single-phase and three-phase lines |
| Power Supply Input | 115/230 V AC, 50/60 Hz |
| Interface / Control | IEEE 488 (GPIB) and RS-232 remote control capability |
| Operating Temperature Range | 0 °C to 40 °C |
| Model | NSG 500B/506C |
|---|
The Schaffner NSG-500B-506C is a high-performance EMC simulator system engineered to replicate electrical fast transients and burst disturbances per IEC/EN immunity testing standards. Featuring modular generator capability and fine pulse control, it allows precise equipment evaluation under diverse electrical conditions. Rugged design and integrated safety ensure reliable, continuous operation.
Ideal for R&D labs, certification bodies, and manufacturers, the NSG-500B-506C provides flexible modular expandability with overload and connection protection, making it essential for compliance testing scenarios.
Testwall can supply the used Schaffner NSG-500B-506C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG-500B-506C.
