Ophir 5006
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 300 W |
| Spectral Range | 0.15 – 12 µm |
| Detector Type | Thermopile |
| Aperture | 50 mm |
| Absorber Type | Metallic Disc |
| Response Time (95%) | 3.5 seconds |
| Accuracy | ±3% |
| Maximum Average Power Density | 150 W/cm² |
| Cooling Method | Air Cooled |
| Compatible Meters | Nova II, Vega, Juno, StarLite, StarBright |
Ophir 5006 Options:
- 5006 - RE - Rear RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5006 - FE - Front RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5006 - R - Rear RF Connector model
- 5006 - F - Front RF Connector model
| Model | 5006 |
|---|

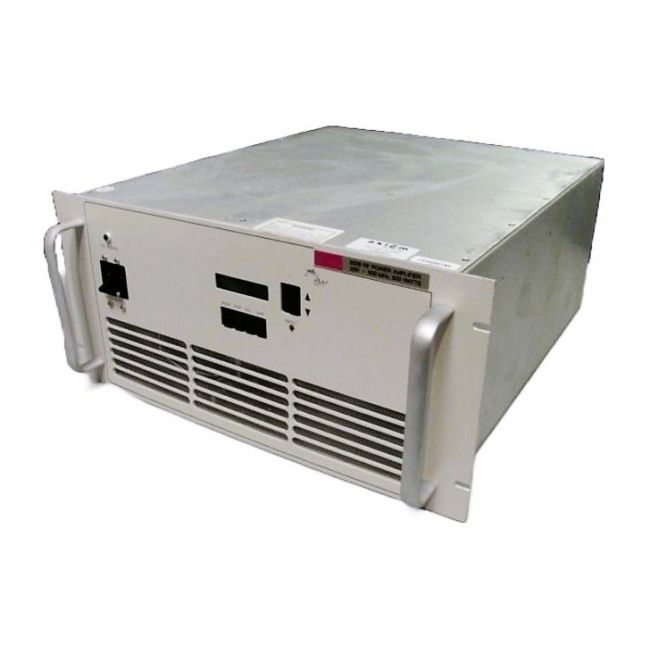

The Ophir 5006 RF Amplifier delivers 500W broadband power across 200–500 MHz, featuring Class A/AB linear devices for superior gain, excellent 3rd order intercept, and wide dynamic range. It provides +57 dB minimum small signal gain, ±2.0 dB flatness, and +61 dBm typical IP3 performance.
Offering 300W minimum at 1 dB compression with harmonics at -20 dBc and spurious below -60 dBc, the Ophir 5006 ensures clean signal amplification. Compact 19"x8.75"x20" design, 80 lbs weight, and Type N connectors enhance usability.
Testwall can supply the used Ophir 5006, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5006.
