Ophir 5061
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 8 kW |
| Spectral Range | 0.15 – 12 µm |
| Detector Type | Thermopile |
| Aperture | 57 mm |
| Maximum Average Power Density | 8 kW/cm² |
| Response Time (95%) | 3.5 seconds |
| Accuracy | ±3% |
| Cooling Method | Water Cooled |
| Connector Type | DB-15 |
| Compatible Meters | Ophir Nova II, Juno, Vega, StarLite |
Ophir 5061 Options:
- 5061 - R - Rear Panel Connectors
- 5061 - F - Front Panel Connectors
- 5061 - RE - R model w/Control Option
- 5061 - FE - F model w/Control Option
- 5061 - RT - RE model w/Ethernet Interface
- 5061 - FT - FE model w/Ethernet Interface
| Model | 5061 |
|---|

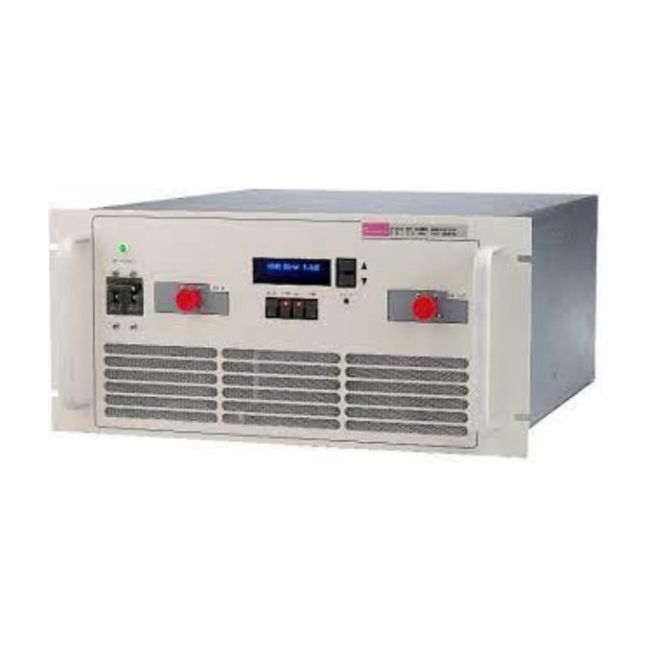

The Ophir 5061 Amplifier is a 50 Watt broadband amplifier operating in the 0.8 – 4.2 GHz range. It employs Class A/AB linear power devices, ensuring an excellent 3rd order intercept point, a wide dynamic range, and a small signal gain of +51 dB. With saturated output power of 50W minimum, power flatness of ±1.5 dB (no ALC) and ±1 dB (with ALC), along with spurious signals below -60 dBc, it guarantees stable and reliable amplification. The unit supports CW, AM, FM, PM, and Pulse formats.
Designed with a nominal 50 Ohm input/output impedance, the Ophir 5061 operates on 100–240 VAC single-phase input, making it adaptable for diverse applications. Its compact and lightweight build makes it suitable for laboratory, research, and industrial test environments.
Testwall can supply the used Ophir 5061 Amplifier, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5061 Amplifier.
