Ophir 5088
| Attribute | Value |
|---|---|
| Measurement Range | 10 mW – 40 W |
| Wavelength Range | 0.15 – 12 µm |
| Detector Type | Thermopile |
| Aperture | 30 mm |
| Damage Threshold (CW) | 4 W/cm² |
| Damage Threshold (Pulsed) | 6 J/cm² |
| Absorber Type | Metallic Black Coating |
| Response Time | 3.5 seconds (to 95%) |
| Connector Type | 7-pin DIN |
| Compatible Meters | Nova II, Vega, Juno, StarLite, StarBright |
Ophir 5088 Options:
- 5088 - RE - Rear RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5088 - FE - Front RF Connector model with Front Panel Controller Ethernet, IEEE-488 and RS232
- 5088 - R - Rear RF Connector model
- 5088 - F - Front RF Connector model
| Model | 5088 |
|---|

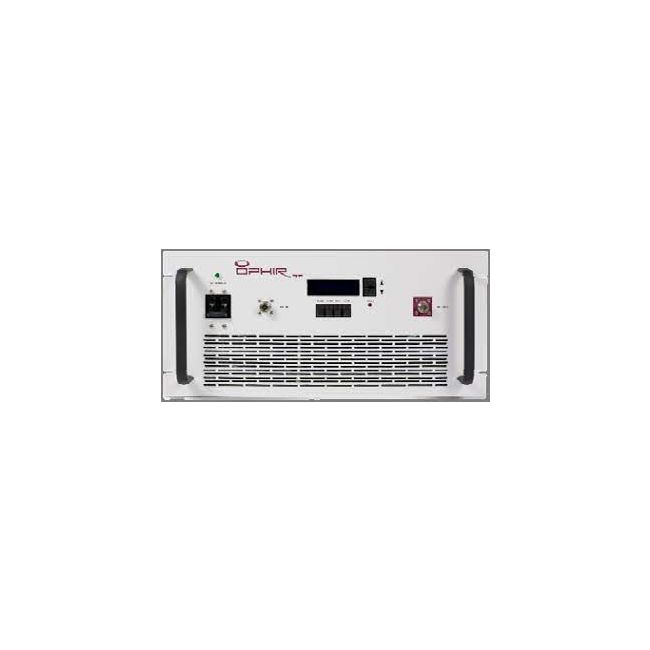

The Ophir 5088 is a 600 Watt broadband amplifier covering 0.01 – 200 MHz, featuring Class A/AB linear devices for excellent 3rd order intercept point, 59 dB gain, and wide dynamic range. Built with advanced components, it delivers high efficiency and proven reliability, with a compact 19" x 14" x 26" design and 150 lb weight.
It provides up to 600 Watts typical output at saturation, ALC gain flatness of ±2.5 dB, spurious signals < -60 dBc, and harmonics at -15 dBc typical at 250 Watts. Its rugged build ensures performance in demanding RF applications up to 10,000 ft altitude.
Testwall can supply the used Ophir 5088, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5088.
