Ophir 5165
| Attribute | Value |
|---|---|
| Wavelength Range | 0.15 - 12 µm |
| Power Range | 10 mW - 300 W |
| Energy Range | 20 mJ - 600 J |
| Detector Type | Thermal (Thermopile) |
| Aperture | 65 mm |
| Maximum Average Power | 300 W |
| Maximum Peak Power | 10 kW |
| Measurement Accuracy | ±3% |
| Response Time | 0.5 s (to 95%) |
| Connector Type | DB15 (Compatible with Ophir Smart Displays and PC Interfaces) |
Ophir 5165 Options:
- 5165 - RE - Rear Panel model with RS232 & IEEE
- 5165 - FE - Front Panel model with RS232 & IEEE
- 5165 - RT - Rear Panel model with Ethernet Interface
- 5165 - FT - Front Panel model with Ethernet Interface
| Model | 5165 |
|---|

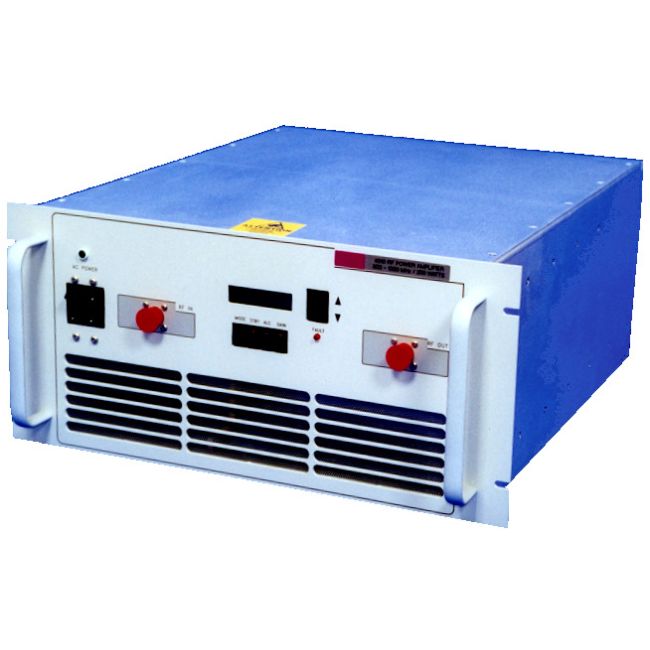

The Ophir 5165 is a broadband amplifier delivering 250W from 0.8–3 GHz and 200W from 3–4.2 GHz, ensuring high gain and excellent linearity. It operates with Class A/AB design, providing a wide dynamic range, superior third-order intercept point, and outstanding efficiency with proven reliability.
With features such as ±1.5 dB power flatness, +60 dBm IP3, 50-ohm impedance, and -20 dBc harmonics, this amplifier supports multiple signal formats including CW, AM, FM, PM, and pulse. Internal forced-air cooling and rugged construction allow reliable performance in demanding environments.
Testwall can supply the used Ophir 5165 Amplifier, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Ophir 5165 Amplifier.
