Pendulum

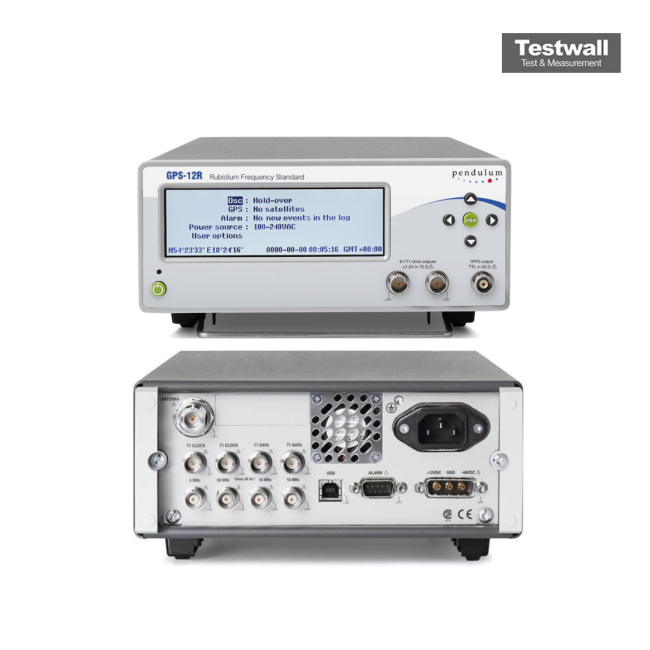

Pendulum GPS12RG
10 MHz Frequency Output
12 parallel tracking channels GPS Receiver Channels
±50 ns RMS to UTC Timing Accuracy
Rubidium (Rb) oscillator Oscillator Type
±1 × 10⁻¹² (GPS locked) Frequency Accuracy
| Attribute | Value |
|---|---|
| Frequency Output | 10 MHz |
| GPS Receiver Channels | 12 parallel tracking channels |
| Timing Accuracy | ±50 ns RMS to UTC |
| Oscillator Type | Rubidium (Rb) oscillator |
| Frequency Accuracy | ±1 × 10⁻¹² (GPS locked) |
| 1PPS Output | 1 pulse per second, synchronized to GPS/UTC |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C |
| Interface | RS-232 serial interface for control and status monitoring |
| Form Factor | 1U rack-mountable unit (19-inch rack compatible) |
Pendulum GPS12RG Options:
- GPS12RG - 70B - 3x 10 MHz plus 1x 5MHz extra outputs, sine, 1Vrms
- GPS12RG - 71B - Multiple reference outputs 0.1/1/5/10 MHz, sine, 1Vrms
- GPS12RG - 72B - 2x 2.048 MHz outputs plus 2x 2.048 Mbps outputs
- GPS12RG - 74B - 2x 1.544 MHz outputs plus 2x 1.544 Mbps outputs
- GPS12RG - 77 - -48 VDC supply (for external power source)
- GPS12RG - 78/HS - Internal Battery and external +12 VDC power supply inlet
- GPS12RG - 22/90 - 19" rack mount kit
- GPS12RG - 27 - Soft carrying case
- GPS12RG - 27H - Heavy-duty transport case
- GPS12RG - 01/00 - GPS only (L1) Antenna
- GPS12RG - 01/90 - Combined Glonass/GPS Antenna
- GPS12RG - 01/50 - GPS Antenna Mounting Kit
- GPS12RG - 02 - Antenna cable, 20 m
- GPS12RG - 02/50 - Antenna cable, 50 m
- GPS12RG - 02/130 - Antenna cable, 130 m
- GPS12RG - 90/10 - Calibration certificate with protocol
- GPS12RG - 90/00 - Calibration certificate hold-over aging/week
- GPS12RG - 95/03 - Extended warranty to 3 years
- GPS12RG - 95/05 - Extended warranty to 5 years
- GPS12RG - OM-12 - Printed Users Manual (PDF-file is included as standard)
| Model | GPS12RG |
|---|
- GPS-disciplined Rubidium clock for near-Cesium stability
- OCXO option (Model GPS-12)
- Internal battery option for transportation and mains-free field use
- Two switchable 1.544 MHz (T1) or 2.048 MHz (E1) front-panel outputs
- 1-pps front-panel output
- 1, 5 & 10 MHz outputs
- Optional -48 VDC operation
- Use of both GLONASS and GPS gives better signal coverage (GPS-12RG)
