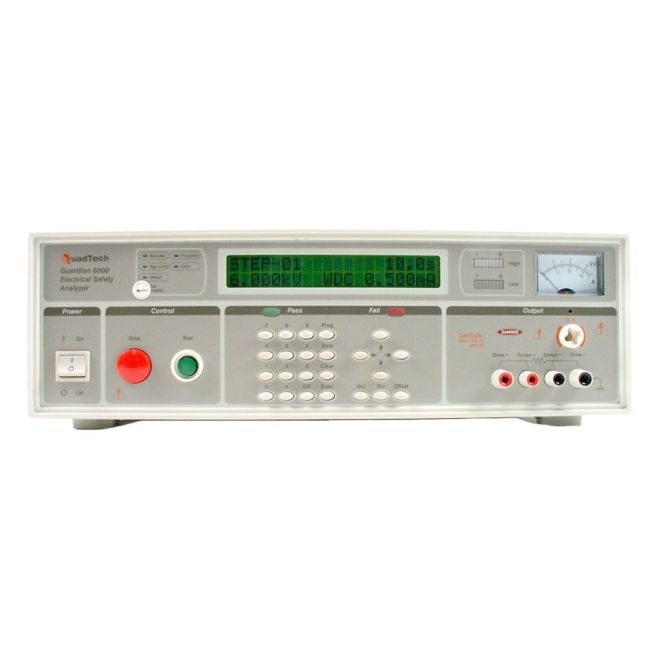

Quadtech GUARDIAN 6000
| Attribute | Value |
|---|---|
| Test Voltage Range | 10V to 6000V AC/DC |
| Maximum Output Current | 200 mA AC / 10 mA DC |
| Insulation Resistance Range | 100 kΩ to 50 GΩ |
| Withstand Voltage (Hipot) Test | AC and DC Hipot Testing up to 6000V |
| Frequency | 50 Hz / 60 Hz |
| Measurement Accuracy | ±(1% of reading + 2 counts) |
| Interface/Connectivity | RS-232, USB, Handler Interface |
| Display | Large LCD with backlight for simultaneous reading of voltage and current |
| Safety Standards Compliance | UL, CE, IEC 60950, IEC 61010 |
| Power Requirements | 90–264V AC, 47–63 Hz |
Quadtech GUARDIAN 6000 Options:
- GUARDIAN 6000 - 6000-01 - Scanner, 8 Channel 5HV /3GC
- GUARDIAN 6000 - 6000-02 - Scanner, 8 Channel 3HV/5GC
- GUARDIAN 6000 - 6000-03 - Scanner, 8 Channel HV Rack Mnt.
- GUARDIAN 6000 - S04 - HV Lead Set, 2m
- GUARDIAN 6000 - S05 - Foot Switch
- GUARDIAN 6000 - S08 - Gun Probe
- GUARDIAN 6000 - S09 - HV Lead, 1 meter, unterminated
- GUARDIAN 6000 - G13 - Corded Product Adapter
- GUARDIAN 6000 - G14 - Power Entry Adapter
- GUARDIAN 6000 - G16 - International Power Strip
- GUARDIAN 6000 - Gxx - Rack Mount Ears
- GUARDIAN 6000 - G25 - Corded Product Adapter (240V)
- GUARDIAN 6000 - G26 - RS232 Interface
| Model | GUARDIAN 6000 |
|---|
The QuadTech Guardian-6000 is a versatile electrical safety tester integrating AC/DC hipot, insulation resistance, continuity, and ground bond testing in a single unit. Engineered for compliance, it supports UL, CE, and IEC standards, with programmable test sequences and advanced trip settings ensuring operator safety and precise measurement accuracy.
Its robust design makes it suitable for both laboratory R&D and high-volume production lines, offering flexibility and dependable performance across diverse applications. Safety interlocks and customizable settings further enhance usability and reliability.
Testwall can supply the used QuadTech Guardian-6000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the QuadTech Guardian-6000.
