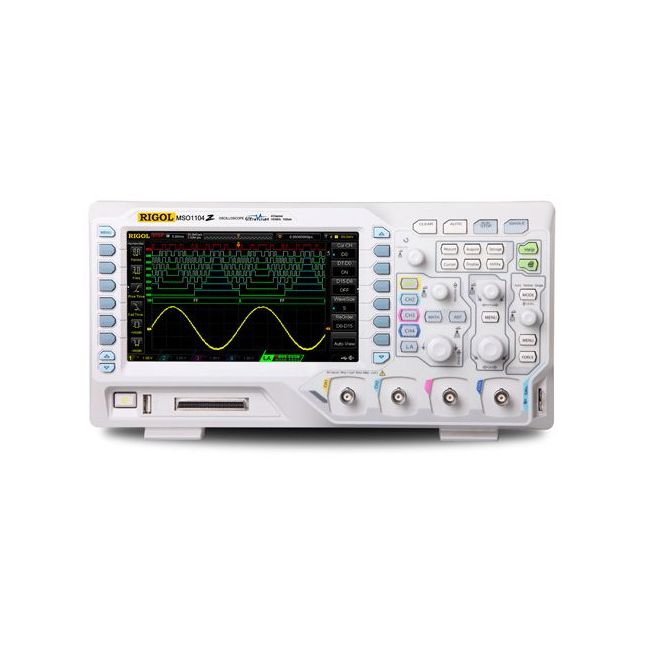

Rigol MSO1104Z
100 MHz Mixed Signal Oscilloscope
100 MHz Bandwidth
4 Analog Channels
16 Digital Channels
1 GSa/s Maximum Sample Rate
12 Mpts (standard) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Maximum Sample Rate | 1 GSa/s |
| Memory Depth | 12 Mpts (standard) |
| Vertical Resolution | 8-bit |
| Display | 7-inch WVGA (800 x 480) TFT LCD |
| Waveform Capture Rate | Up to 30,000 waveforms per second |
| Serial Bus Decoding | I2C, SPI, RS232/UART, Parallel (standard) |
| Input Impedance | 1 MΩ ± 2% in parallel with 13 pF ± 3 pF |
Rigol MSO1104Z Options:
- MSO1104Z - MSO1000Z Upgrade Package - MSO upgrade package for DS1000Z Plus only, including logic analyzer probe (RPL1116) and model label
- MSO1104Z - MEM-DS1000Z - Memory Depth Option: Analog channel: 24 Mpts (single channel)/12 Mpts (dual-channel)/6 Mpts (three/four-channel); Digital channel: 24 Mpts (8-channel)/12 Mpts (16-channel)
- MSO1104Z - REC-DS1000Z - Waveform Record Option: provides the waveform recording and playback function
- MSO1104Z - AT-DS1000Z - Advanced Trigger Option: RS232/UART trigger, I2C trigger, SPI trigger, Runt trigger, Window trigger, Nth edge trigger, delay trigger, timeout trigger, Setup/Hold trigger
- MSO1104Z - SA-DS1000Z - Serial Protocol Analysis Option: RS232/UART, I2C and SPI trigger and decoding functions
- MSO1104Z - RM-DS1000Z - Rack Mount Kit (Optional Accessory)
| Model | MSO1104Z |
|---|
