Rohde & Schwarz

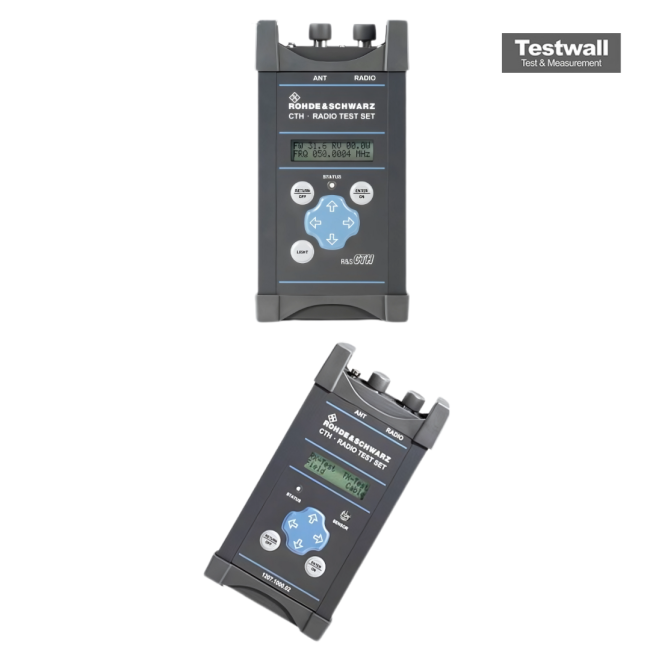

Rohde & Schwarz CTH100A
Portable Radio Test Set
100 kHz to 3 GHz Frequency Range
-150 dBm (typ.) at 1 GHz Displayed Average Noise Level (DANL)
-95 dBc/Hz at 1 GHz, 10 kHz offset (typ.) Phase Noise
1 Hz to 3 MHz Resolution Bandwidth (RBW)
< 1.5 dB Total Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Displayed Average Noise Level (DANL) | -150 dBm (typ.) at 1 GHz |
| Phase Noise | -95 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Total Amplitude Accuracy | < 1.5 dB |
| Maximum Input Power | +30 dBm (1 W) |
| Input Impedance | 50 Ohm |
| Display | 10.1-inch WXGA touchscreen (1280 x 800 pixels) |
| Interfaces/Connectivity | USB, LAN (Ethernet), HDMI |
| Power Supply | AC 100 V to 240 V, 50/60 Hz; also supports DC and battery operation |
Rohde & Schwarz CTH100A Options:
- CTH100A - CTH-Z20 - Hardcase, for radio test set and accessories
- CTH100A - CTH-Z30 - 50 W Load, BNC Adapters and Cables
- CTH100A - WE1CTH - Extended Warranty, one year
- CTH100A - WE2CTH - Extended Warranty, two years
- CTH100A - WE3CTH - Extended Warranty, three years
- CTH100A - WE4CTH - Extended Warranty, four years
- CTH100A - CW1CTH - Extended Warranty with Calibration Coverage, one year
- CTH100A - CW2CTH - Extended Warranty with Calibration Coverage, two years
- CTH100A - CW3CTH - Extended Warranty with Calibration Coverage, three years
- CTH100A - CW4CTH - Extended Warranty with Calibration Coverage, four years
| Model | CTH100A |
|---|
