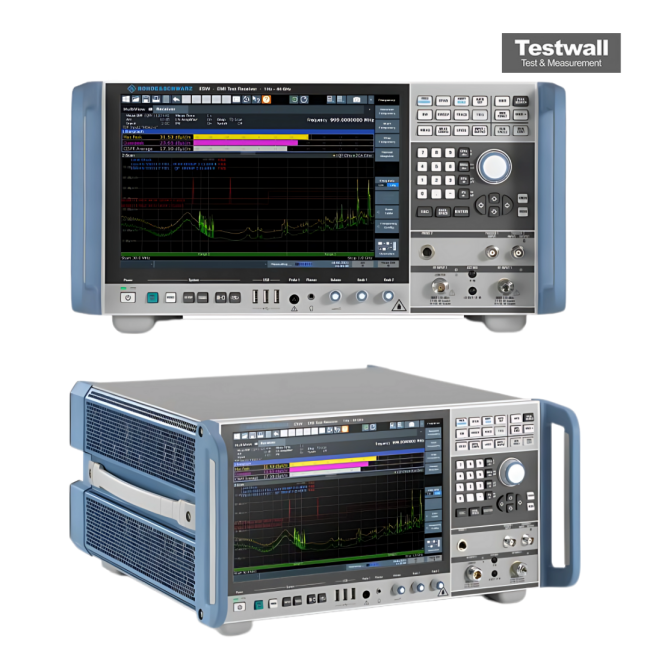

Rohde & Schwarz ESW
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 1 GHz (ESW2), 2 Hz to 8 GHz (ESW8), 2 Hz to 26.5 GHz (ESW26), 2 Hz to 44 GHz (ESW44) |
| Receiver Type | EMI Test Receiver compliant with CISPR 16-1-1 |
| Detectors | Peak, Quasi-Peak, Average, RMS, RMS-Average, CISPR-Average |
| Dynamic Range | Up to 110 dB (typical) |
| Displayed Average Noise Level (DANL) | -165 dBm (typical, with preamplifier enabled) |
| Resolution Bandwidth (RBW) | 10 Hz to 10 MHz (in 1-2-3-5 steps), CISPR bandwidths: 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Measurement Standards Compliance | CISPR 16-1-1, MIL-STD-461, DO-160, VDE, FCC, ANSI |
| Input Impedance | 50 Ω (standard), 150 Ω (optional) |
| Phase Noise | < -130 dBc/Hz at 10 kHz offset (at 1 GHz carrier, typical) |
| Interface & Connectivity | LAN (1GbE), USB 3.0, GPIB (optional), HDMI, Windows 10 operating system with EMC32 software compatibility |
Rohde & Schwarz ESW Options:
- ESW - B4 - OCXO precision frequency reference
- ESW - B8 - Resolution bandwidth > 10 MHz (for R&S ESW8/26)
- ESW - B8 - Resolution bandwidth > 10 MHz (for R&S ESW44; export licence required)
- ESW - B10 - External generator control
- ESW - B18 - Spare solid state drive (removable hard drive)
- ESW - B21 - LO/IF connections for external mixers (for R&S ESW26)
- ESW - B21 - LO/IF connections for external mixers (for R&S ESW44)
- ESW - B24 - Low noise amplifier, 150 kHz to 8 GHz (for R&S ESW8)
- ESW - B24 - Low noise amplifier, 150 kHz to 26.5 GHz (for R&S ESW26)
- ESW - B24 - Low noise amplifier, 150 kHz to 44 GHz (for R&S ESW44)
- ESW - FSW-B33 - USB mass memory write protection
- ESW - K7 - Analog modulation analysis for AM/FM/φM
- ESW - K33 - Security write protection of solid state drive
- ESW - K55 - 80 MHz real-time measurement application, POI > 15 µs
| Model | ESW |
|---|
The Rohde & Schwarz ESW provides exceptional signal analysis with frequency coverage from 1 Hz to 44 GHz, supporting compliance with CISPR 16-1-1, ANSI C63.2, MIL‑STD‑461, and FCC standards. It delivers high dynamic range, precision accuracy, and ultrafast FFT-based time domain scanning.
With a real-time spectrogram capability up to 970 MHz bandwidth (optional), this unit is ideal for rapid and accurate EMC testing, spectrum monitoring, and advanced signal diagnostics.
Testwall can supply the used Rohde & Schwarz ESW, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESW.
