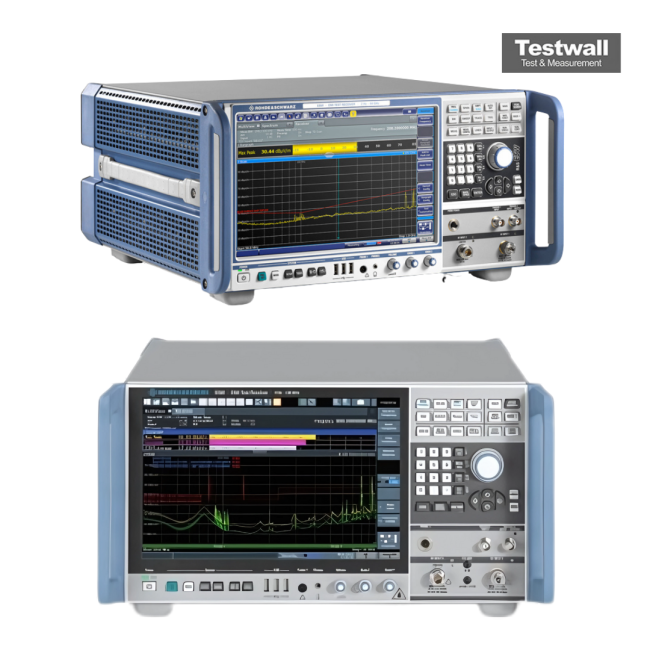

Rohde & Schwarz ESW8
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8 GHz |
| Receiver Type | EMI Test Receiver |
| Dynamic Range | Up to 110 dB |
| Resolution Bandwidth (RBW) | 10 Hz to 10 MHz (CISPR, MIL-STD, and user-defined bandwidths) |
| Detectors | Peak, Quasi-Peak, Average, RMS, CISPR Average, AC Video |
| Displayed Average Noise Level (DANL) | -165 dBm (typical, with preamplifier) |
| Input Impedance | 50 Ohm |
| Standards Compliance | CISPR 16-1-1, MIL-STD-461, DO-160, VDE, FCC |
| Scan Speed | High-speed scanning with real-time spectrum analysis capability |
| Interface / Connectivity | LAN (LXI), USB, GPIB (optional), HDMI |
Rohde & Schwarz ESW8 Options:
- ESW8 - ESW-B4 - OCXO precision frequency reference
- ESW8 - ESW-B8 - Resolution bandwidth > 10 MHz
- ESW8 - ESW-B10 - External generator control
- ESW8 - ESW-B18 - Spare solid state drive (removable hard drive)
- ESW8 - ESW-B24 - Low noise amplifier, 150 kHz to 8 GHz
- ESW8 - FSW-B33 - USB mass memory write protection
- ESW8 - ESW-K7 - Analog modulation analysis for AM/FM/φM
- ESW8 - ESW-K33 - Security write protection of solid state drive
- ESW8 - ESW-K55 - 80 MHz real-time measurement application, POI > 15 µs
| Model | ESW8 |
|---|
The Rohde and Schwarz ESW8 is an advanced EMI test receiver supporting frequencies from 2 Hz to 8 GHz, delivering exceptional RF characteristics and fast measurement speed. It complies with CISPR16-1-1, ANSIC63.2, MIL-STD-461, and FCC standards, with superior dynamic range and accuracy for certification testing. Key features include FFT-based ultrafast scanning, selectable highpass/notch filters, and real-time spectrum analysis with 80 MHz bandwidth.
Designed for both EMI testing and signal analysis, the ESW8 integrates multiple functionalities in a single unit, supported by a MultiView display for easy operation and comprehensive diagnostics.
Testwall can supply the used Rohde and Schwarz ESW8, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ESW8.
