Schaffner NSG 223A
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Output Current | Up to 150 A peak |
| Pulse Rise Time | 5 ns (typical) |
| Pulse Duration | 50 ns / 100 ns selectable |
| Repetition Rate | Up to 1 MHz |
| Compliance Standards | IEC 61000-4-4 (EFT/Burst), EN 61000-4-4 |
| Coupling Methods | Capacitive coupling clamp and direct coupling |
| Source Impedance | 50 Ω |
| Power Supply Input | 100–240 V AC, 50/60 Hz |
| Interface / Control | RS-232 serial interface for remote control |
Schaffner NSG 223A Options:
- NSG 223A - 100V/50Hz - Mains voltage 100V, 50Hz
- NSG 223A - 100V/60Hz - Mains voltage 100V, 60Hz
- NSG 223A - 220V/50Hz - Mains voltage 220V, 50Hz
- NSG 223A - 220V/60Hz - Mains voltage 220V, 60Hz
- NSG 223A - Schuko - Schuko plug type (D/S/NL/I/E/N/SF etc.)
- NSG 223A - CH - Swiss plug type (CH)
- NSG 223A - F - French plug type (F/B)
- NSG 223A - USA - USA/CAN/FE plug type (UL 498/13)
- NSG 223A - GB - UK plug type (BS 1363)
| Model | NSG 223A |
|---|

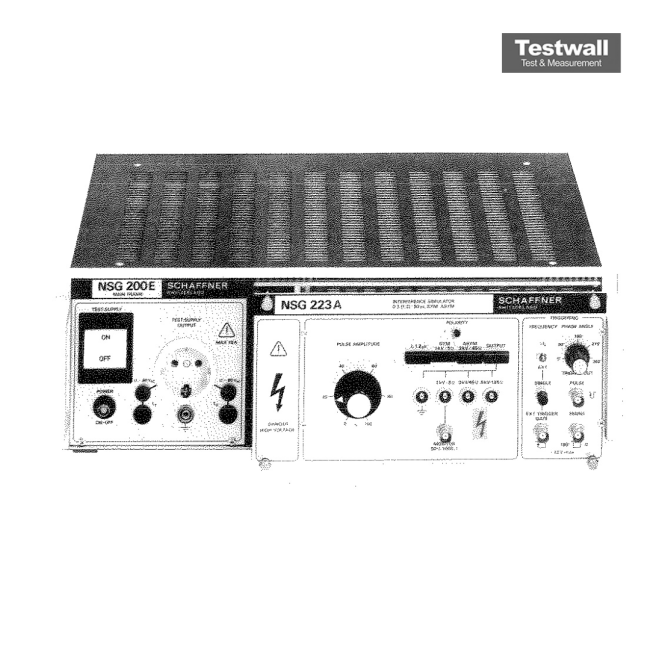

The Schaffner NSG 223A module is designed to generate high-energy pulses typical of those caused by switching inductive and capacitive loads or lightning strikes. It delivers pulses up to 2 Joules, available via mains coupling or separate sockets for component testing. With an internal impedance of 45 Ohm, the generator ensures safer operation compared to strict IEC 801-5 standards while still delivering 1.2/50 μs test pulses.
This unit is ideal for simulating surge events in compliance testing and for assessing the robustness of input circuits against overvoltage stress. Both symmetrical and asymmetrical mains coupling are supported for versatile testing.
Testwall can supply the used Schaffner NSG 223A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG 223A.
