Rohde & Schwarz FPL1007
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 7.5 GHz |
| Display Noise Level (DANL) | -150 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -105 dBc/Hz at 1 GHz carrier, 10 kHz offset (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Total Amplitude Accuracy | < 0.4 dB (typ.) |
| Third-Order Intercept (TOI) | +15 dBm at 1 GHz (typ.) |
| Maximum Input Power (RF Input) | +30 dBm (1 W) continuous, DC 50 V max |
| Preamplifier | Built-in preamplifier, switchable, up to 7.5 GHz |
| Display | 10.1-inch WXGA (1366 x 768) capacitive touchscreen |
| Connectivity / Interfaces | USB, LAN (Ethernet), HDMI, optional GPIB; supports SCPI remote control |
Rohde & Schwarz FPL1007 Options:
- FPL1007 - FPL1-B4 - OCXO Reference Frequency
- FPL1007 - FPL1-B5 - Additional Interfaces (IF/video/demod out, user port, noise source control, power sensor, AF output, loudspeaker)
- FPL1007 - FPL1-B10 - GPIB Interface
- FPL1007 - FPL1-B19 - Second Hard Disk (SSD), mounted on PC board, including analyzer firmware
- FPL1007 - FPL1-B22 - RF Preamplifier
- FPL1007 - FPL1-B25 - 1 dB Steps for electronic attenuator
- FPL1007 - FPL1-B30 - DC Power Supply 12/24 V
- FPL1007 - FPL1-B31 - Internal Lithium-Ion Battery (including 2 battery packs and internal charging unit)
- FPL1007 - FPL1-B40 - 40 MHz Analysis Bandwidth
- FPL1007 - FPL1-K7 - AM/FM/φM Measurement Demodulator
- FPL1007 - FPL1-K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FPL1007 - FPL1-K30 - Noise Figure and Gain Measurements (requires FPL1-B5)
| Model | FPL1007 |
|---|

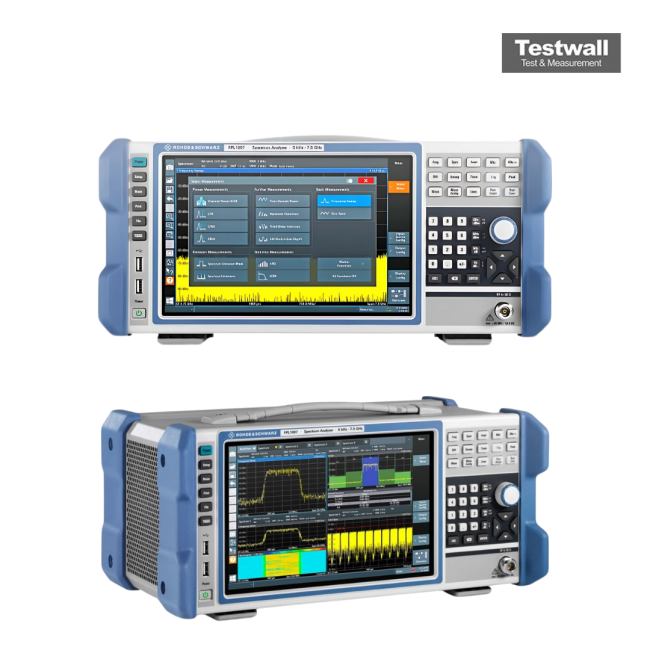

The Rohde and Schwarz FPL1007 Spectrum Analyzer, covering 5 kHz to 7.5 GHz, integrates advanced RF measurement capabilities in a compact, portable form. It features a high-resolution 10.1” display (1280×800), intuitive touchscreen, USB ports, hard keys, and numerical keypad with unit inputs for precise control and ease of use.
Designed for flexible use, the FPL1007 supports fast, efficient spectrum analysis with eight built-in options and includes RF input and internal generator output for versatile testing setups.
Testwall can supply the used Rohde and Schwarz FPL1007, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FPL1007
