Rohde & Schwarz FSH-Z14
| Attribute | Value |
|---|---|
| Frequency Range | 0 to 3 GHz |
| Directivity | ≥ 25 dB (typ. 35 dB) |
| Impedance | 50 Ω |
| Return Loss Measurement Range | 0 to 60 dB |
| Maximum Input Power (continuous) | 2 W (33 dBm) |
| Maximum Input Power (peak) | 10 W (40 dBm) |
| Connector Type | N-type female |
| Compatible Instruments | Rohde & Schwarz FSH series handheld spectrum analyzers |
| Operating Temperature | -10 °C to +55 °C |
| Dimensions (L × W × H) | Approximately 110 mm × 40 mm × 30 mm |
| Model | FSH-Z14 |
|---|

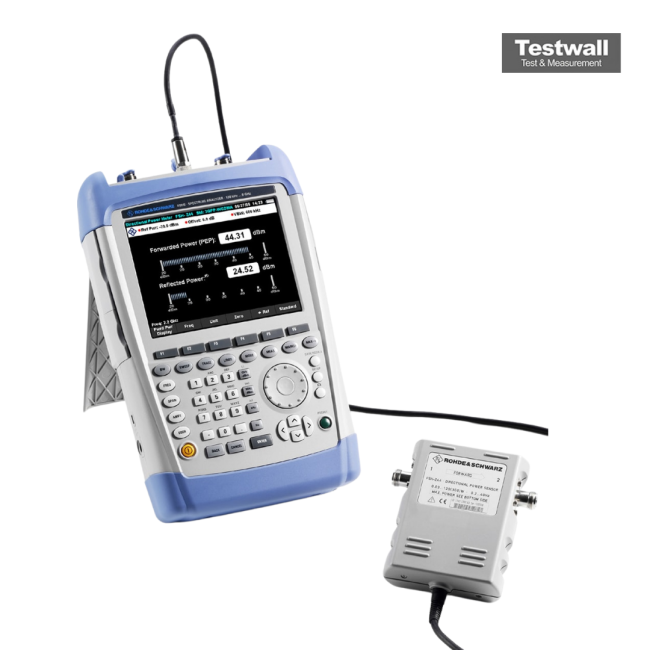

The Rohde and Schwarz FSH-Z14 is a directional power sensor that operates from 25 MHz to 1 GHz, enabling accurate directional power measurements without external attenuators. It can measure average power up to 120 W and PEP up to 300 W, and supports standards like GSM/EDGE, WCDMA, CDMA2000, DVB-T, and DAB.
It is ideal for simultaneous measurement of output power and antenna matching in transmitter systems. Forward and reverse power ratios are displayed as return loss or SWR.
Testwall can supply the used Rohde and Schwarz FSH-Z14, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSH-Z14.
