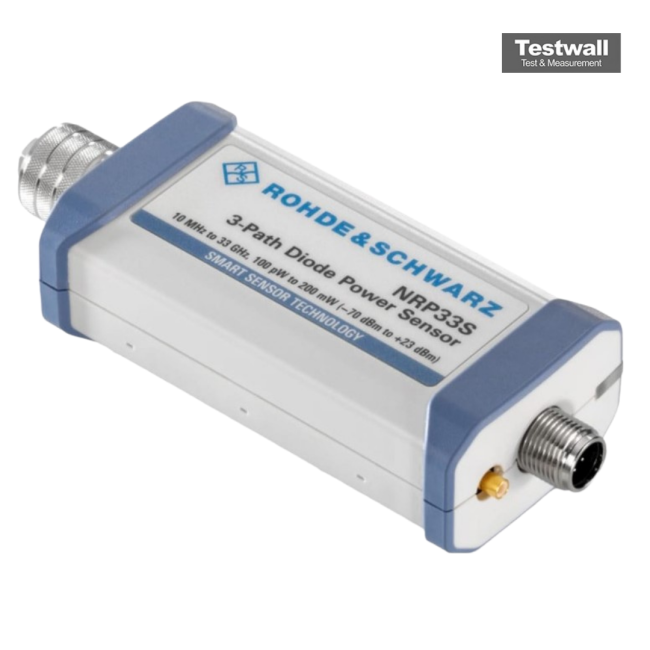

Rohde & Schwarz NRP33SN
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 33 GHz |
| Maximum Power | 1 W average, 2 W peak (10 µs) |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Connector | 3.5 mm male |
| Sensor Type | peak and average (3-path diode) |
| Power Range | 100 pW to 200 mW (-70 to +23 dBm) |
| SWR | <1.13 (10 MHz to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 18 GHz), <1.30 (to 26.5 GHz), <1.35 (to 33 GHz) |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Interfaces | USB, LAN (PoE) |
| Dimensions | 73 × 26 × 146 mm |
| Weight | <0.35 kg |
Compatible power meters
Rohde & Schwarz NRP33SN Options:
- NRP33SN - NRP-Z4 - USB adapter cable (passive)
- NRP33SN - NRP-Z3 - USB adapter cable (active)
- NRP33SN - NRPZ-K1 - R&S NRPV license for one sensor
- NRP33SN - NRP-Z5 - Sensor hub
The Rohde and Schwarz NRP33SN is a three-path diode power sensor designed for LAN operation, covering a frequency range from 10 MHz to 33 GHz. It offers a measurement level from -70 dBm to +23 dBm and supports power levels between 100 pW and 200 mW with a 3.5 mm (m) connector interface. The sensor requires PoE for LAN connectivity and supports optional PoE switches like the R&S NRP-ZAP2.
This device features intelligent averaging for reduced measurement time and delivers highly accurate and stable readings, ensuring minimized measurement uncertainty through fully characterized sensors and versatile measurement functions.
Testwall can supply the used Rohde and Schwarz NRP33SN, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP33SN.
