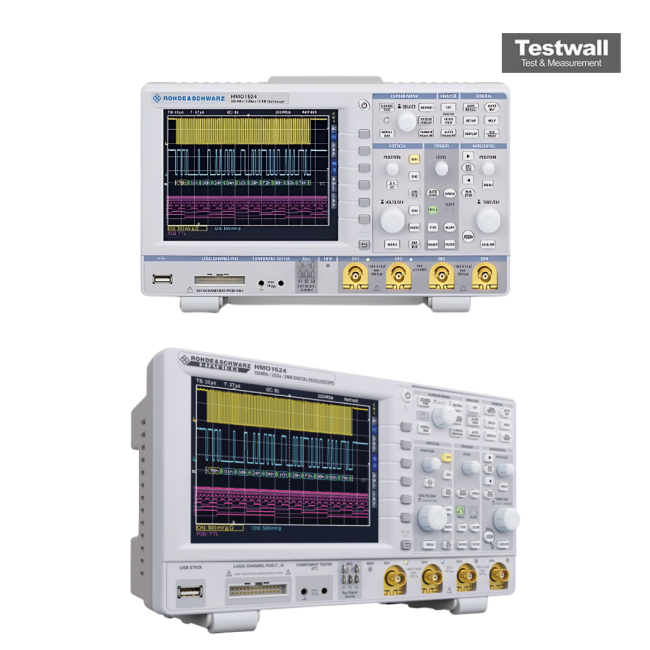

Rohde & Schwarz HMO1524
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 4 |
| Sample Rate | 1 GSa/s |
| Memory Depth | 2 Mpts (interleaved) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Display | 6.5-inch WVGA color LCD (800 x 480 pixels) |
| Logic Analyzer Channels | 8 (optional MSO upgrade) |
| Interface / Connectivity | USB, Ethernet (LAN), VGA output |
Rohde & Schwarz HMO1524 Options:
- HMO1524 - HOO572 - Bandwidth upgrade 50MHz to 70MHz
- HMO1524 - HOO512 - Bandwidth upgrade 50MHz to 100MHz
- HMO1524 - HOO712 - Bandwidth upgrade 70MHz to 100MHz
- HMO1524 - HOO312 - Bandwidth upgrade 100MHz to 200MHz
- HMO1524 - HOO313 - Bandwidth upgrade 100MHz to 300MHz
- HMO1524 - HOO323 - Bandwidth upgrade 200MHz to 300MHz
- HMO1524 - HOO10 - I2C, SPI, UART/RS-232 on analog and logic channels
- HMO1524 - HOO11 - I2C, SPI, UART/RS-232 on all analog channels
- HMO1524 - HOO12 - CAN and LIN on analog and logic channels
- HMO1524 - WE1 - Extended Warranty, one year
- HMO1524 - WE2 - Extended Warranty, two years
- HMO1524 - CW1 - Extended Warranty with Calibration Coverage, one year
- HMO1524 - CW2 - Extended Warranty with Calibration Coverage, two years
| Model | HMO1524 |
|---|
The Rohde & Schwarz HMO1524 is a 150 MHz digital oscilloscope with 4 analog and up to 8 logic channels, offering 2 GSa/s real-time sampling and 2 MPts memory depth. Featuring a 6.5" VGA TFT display, USB, RS-232, DVI, and USB stick connector, it supports serial bus triggers and hardware-accelerated decoding with optional protocols like I2C, SPI, UART, CAN, and LIN. With low noise A/D conversion, vertical sensitivity down to 1 mV/div, and offset control up to ±20 V, it delivers precise and detailed waveform analysis.
Ideal for mixed-signal analysis, the HMO1524 supports features like event search, pass/fail testing, and memory zoom up to 50,000:1. Trigger modes include slope, video, logic, and pulse width.
Testwall can supply the used Rohde & Schwarz HMO1524, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz HMO1524.
