Teledyne LeCroy SDA-760ZI-A
| Attribute | Value |
|---|---|
| Bandwidth | 7.5 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 256 Mpts/Ch (standard), up to 512 Mpts/Ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Input Impedance | 50 Ω |
| Timebase Range | 20 ps/div to 160 s/div |
| Serial Data Analysis | Integrated Serial Data Analyzer with SDAIII CompleteLinQ software for eye diagram, jitter, and noise analysis |
| Display | 12.1-inch color LCD touchscreen |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Model | SDA-760ZI-A |
|---|

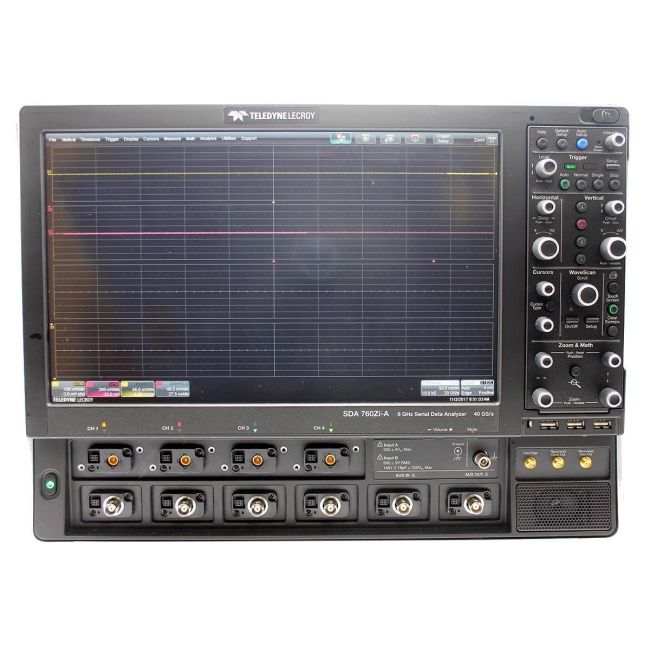

The Teledyne LeCroy SDA-760Zi-A is a powerful serial data analyzer featuring 6 GHz bandwidth and a 40 GS/s sampling rate. It supports deep memory of up to 128 Mpts/ch, enabling extensive eye, jitter, and noise analysis with precise clock recovery. Engineers benefit from advanced triggering and a customizable interface with rich math tools.
Ideal for demanding applications in high-speed serial protocol validation, the SDA-760Zi-A ensures accurate inspection and comprehensive debugging capabilities for modern digital systems.
Testwall can supply the used Teledyne LeCroy SDA-760Zi-A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-760Zi-A.
