Rohde & Schwarz NRP-Z37
| Attribute | Value |
|---|---|
| Sensor Type | thermocouple, with RF output |
| Frequency Range | DC to 26.5 GHz |
| Interfaces | USB (full speed) |
| Dimensions | 48 × 50 × 250 mm |
| Weight | <0.7 kg |
| Power Range | 4 µW to 400 mW (-24 to +26 dBm) |
| Maximum Power | 0.5 W average, 30 W peak (1 µs) |
| SWR | <1.15 (to 2 GHz), <1.18 (to 4.2 GHz), <1.23 (to 8 GHz), <1.25 (to 12.4 GHz), <1.30 (to 18 GHz), <1.45 (to 26.5 GHz) |
| Connector | 3.5 mm male input, 3.5 mm male output |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters

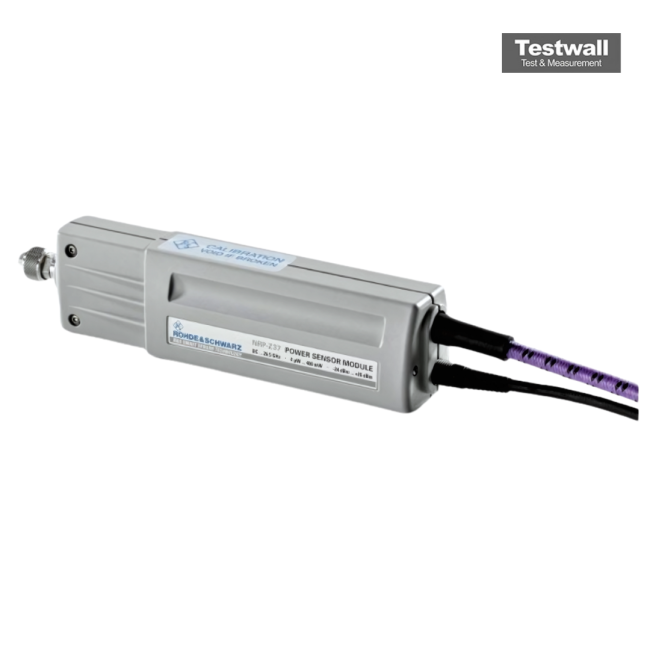

The Rohde and Schwarz NRP-Z37 Power Sensor Module operates from DC to 26.5 GHz and connects via a 3.5 mm interface. It is specially engineered for use with FSMR receivers, extending their functionality into precision power meters with a dynamic range from -115 dBm to +30 dBm. The unit measures power levels from -24 dBm to +26 dBm and serves as a highly accurate reference for absolute power level calibration.
Ideal for level calibration with the R&S FSMR receiver, it enables remote operation via USB from R&S FSMR, NRX, or any Windows PC. Its superior design ensures exacting standards for demanding test environments.
Testwall can supply the used Rohde and Schwarz NRP-Z37, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP-Z37.
