Keysight (Agilent)
Keysight (Agilent) E9301H
10 MHz to 18 GHz Frequency Range
-60 dBm to +20 dBm Power Range
Average Power Sensor Sensor Type
Type-N (male) Connector Type
1.15 (10 MHz to 2 GHz), 1.20 (2 GHz to 18 GHz) VSWR (Maximum)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -60 dBm to +20 dBm |
| Sensor Type | Average Power Sensor |
| Connector Type | Type-N (male) |
| VSWR (Maximum) | 1.15 (10 MHz to 2 GHz), 1.20 (2 GHz to 18 GHz) |
| Dynamic Range | 80 dB |
| Calibration Factor Uncertainty | ±2.3% (typical) |
| Operating Temperature Range | 0°C to 55°C |
| Interface Compatibility | Compatible with Keysight E4418B, E4419B, N1911A, N1912A Power Meters |
| Input Power Maximum (Damage Level) | +25 dBm (316 mW) |
| Model | E9301H |
|---|

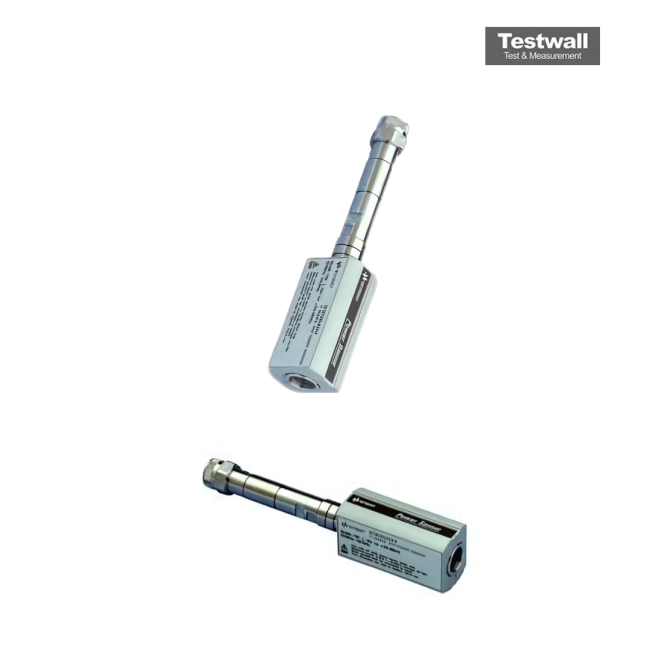

The Keysight (Agilent) E9301H Average Power Sensor offers a dynamic range of -50 to +30 dBm and frequency coverage from 10 MHz to 6 GHz. It supports complex modulation formats like W-CDMA, CDMA (IS-95), TDMA, and OFDM, and stores calibration, linearity, and temperature data in EEPROM.
Ideal for wireless communication testing, the sensor works with EPM and EPM-P series meters and ensures accurate average power measurements.
Testwall can supply the used Keysight (Agilent) E9301H, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E9301H.
