Rohde & Schwarz NRP110T
Thermal Power Sensors - Frequency range DC to 110 GHz
DC to 110 GHz Frequency Range
-30 dBm to +20 dBm Power Measurement Range
1.0 mm (W) coaxial connector Connector Type
±0.9 dB (typical) Measurement Uncertainty
Thermal (Wideband) Power Sensor Sensor Type
| Attribute | Value |
|---|---|
| Frequency Range | DC to 110 GHz |
| Power Measurement Range | -30 dBm to +20 dBm |
| Connector Type | 1.0 mm (W) coaxial connector |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Sensor Type | Thermal (Wideband) Power Sensor |
| Interface | USB 2.0 |
| Measurement Speed | Up to 1,500 readings per second |
| Operating Temperature Range | 0 °C to +55 °C |
| Zero Setting Time | Approx. 6 seconds |
| Compatible Power Meters / Software | Rohde & Schwarz NRP2, NRX, and R&S NRP Toolkit software |
Rohde & Schwarz NRP110T Options:
- NRP110T - NRP-Z4 - USB adapter cable (passive)
- NRP110T - NRP-Z3 - USB adapter cable (active)
- NRP110T - NRPZ-K1 - R&S NRPV license for one sensor
- NRP110T - NRP-Z5 - Sensor hub
| Model | NRP110T |
|---|

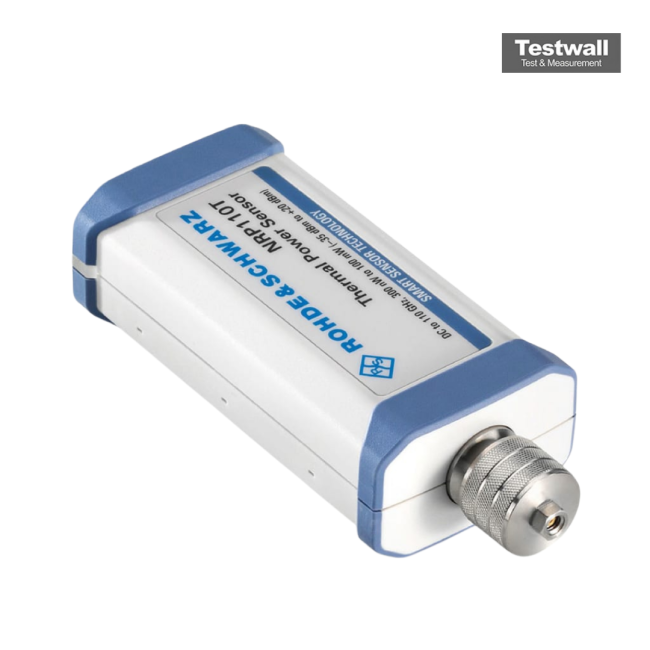

The Rohde and Schwarz NRP110T Thermal Power Sensor operates over a broad frequency range from DC to 110 GHz, with a level range of -35 dBm to +20 dBm. It uses a 1 mm (m) connector for high-frequency applications.
Its design ensures minimal measurement noise, resistance to thermal effects, and compatibility with any modulation, making it ideal for reference measurements in demanding environments.
Testwall can supply the used Rohde and Schwarz NRP110T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP110T.
