Rohde & Schwarz NRP18S-20
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | 10 nW to 15 W (-50 to +42 dBm) |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Connector | Type-N male |
| Sensor Type | peak and average (3-path diode), high power |
| Maximum Power | 18 W average, 100 W peak (10 µs) |
| SWR | <1.14 (to 2.4 GHz), <1.25 (to 8 GHz), <1.30 (to 12.4 GHz), <1.41 (to 18 GHz) |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Interfaces | USB |
| Dimensions | 53 × 46 × 252 mm |
| Weight | <0.37 kg |
Compatible power meters
Rohde & Schwarz NRP18S-20 Options:
- NRP18S-20 - NRP-Z4 - USB adapter cable (passive)
- NRP18S-20 - NRP-Z3 - USB adapter cable (active)
- NRP18S-20 - NRPZ-K1 - R&S NRPV license for one sensor
- NRP18S-20 - NRP-Z5 - Sensor hub

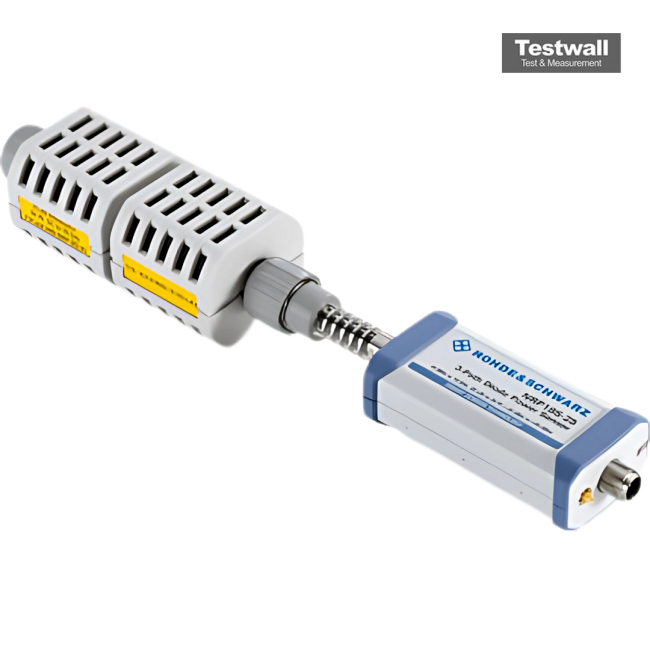

The Rohde & Schwarz NRP18S-20 is a high-power, three-path diode power sensor equipped with a 20 dB attenuator, enabling precise power measurements up to 15 W. It integrates seamlessly with the NRP2 base unit, PCs via USB, or directly with various Rohde & Schwarz instruments. Featuring advanced mismatch error correction, stored S-parameters, and 93 dB dynamic range, it ensures accurate readings down to –70 dBm, independent of modulation type.
Compatible with USB sensor cable NRP-ZKU or NRP-ZK6, it provides thermal-like behavior with significantly faster response, ideal for interference-prone environments.
Testwall can supply the used Rohde & Schwarz NRP18S-20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP18S-20.
