Rohde & Schwarz NRP33S
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 33 GHz |
| Maximum Power | 1 W average, 2 W peak (10 µs) |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Connector | 3.5 mm male |
| Sensor Type | peak and average (3-path diode) |
| Power Range | 100 pW to 200 mW (-70 to +23 dBm) |
| SWR | <1.13 (10 MHz to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 18 GHz), <1.30 (to 26.5 GHz), <1.35 (to 33 GHz) |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Interfaces | USB |
| Dimensions | 48 × 30 × 138 mm |
| Weight | <0.20 kg |
Compatible power meters
Rohde & Schwarz NRP33S Options:
- NRP33S - NRP-Z4 - USB adapter cable (passive)
- NRP33S - NRP-Z3 - USB adapter cable (active)
- NRP33S - NRPZ-K1 - R&S NRPV license for one sensor
- NRP33S - NRP-Z5 - Sensor hub

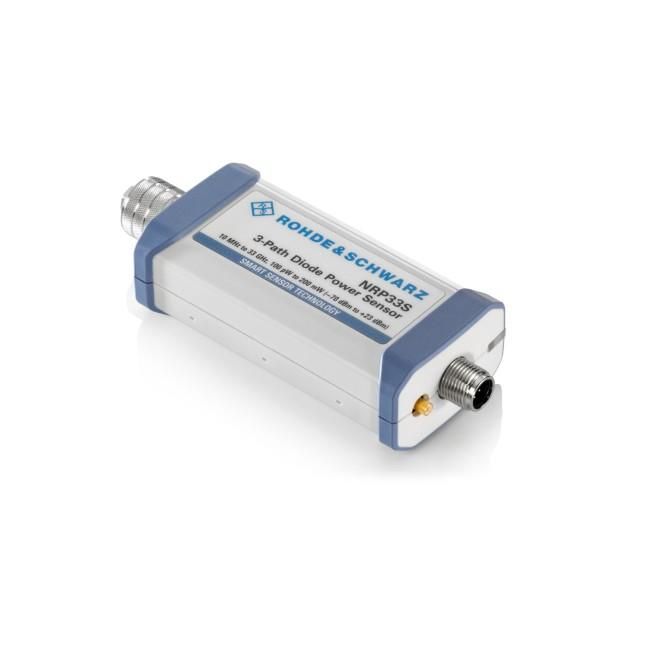

The Rohde & Schwarz NRP33S is a high-precision 3-path diode power sensor covering frequencies from 10 MHz to 33 GHz with a dynamic range of -70 dBm to +23 dBm (100 pW to 200 mW). It features a high-speed measurement rate of 50,000 readings per second and is equipped with a 3.5 mm (m) connector for stable signal input.
Ideal for RF and microwave power measurement tasks, the NRP33S is designed to deliver reliable results in high-performance test setups, ensuring accuracy and speed across applications.
Testwall can supply the used Rohde & Schwarz NRP33S, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP33S.
