Rohde & Schwarz NRP8SN
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 8 GHz |
| Maximum Power | 1 W average, 2 W peak (10 µs) |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Connector | Type-N male |
| Sensor Type | peak and average (3-path diode) |
| Power Range | 100 pW to 200 mW (-70 to +23 dBm) |
| SWR | <1.13 (10 MHz to 2.4 GHz), <1.20 (to 8 GHz) |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Interfaces | USB, LAN (PoE) |
| Dimensions | 73 × 26 × 146 mm |
| Weight | <0.35 kg |
Compatible power meters

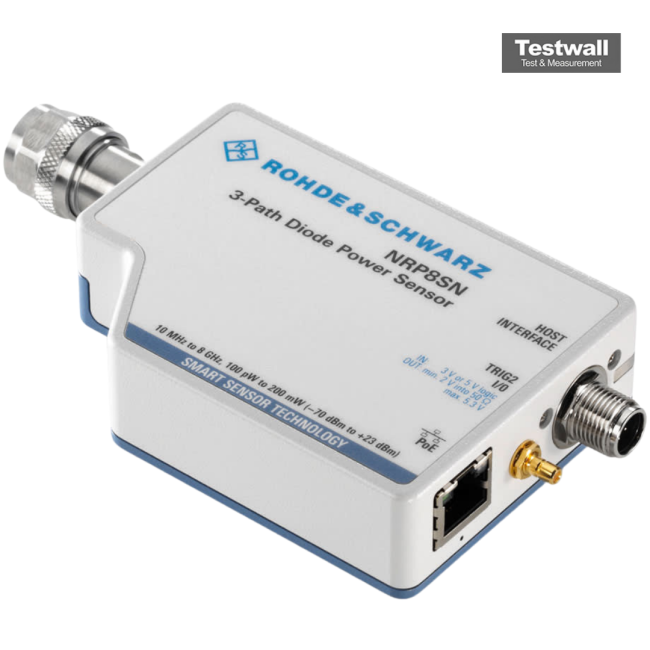

The Rohde and Schwarz NRP8SN is a three-path diode power sensor with a frequency range from 10 MHz to 8 GHz and a power level of -70 dBm to +23 dBm. It supports LAN operation via Power over Ethernet (PoE) and uses an N(m) connector. Key features include intelligent averaging to minimize measurement time, fully characterized power sensors, and reduced measurement uncertainty.
Ideal for precise RF power measurements, this sensor operates efficiently across a wide frequency and power range. A PoE switch is needed if the LAN does not support PoE.
Testwall can supply the used Rohde and Schwarz NRP8SN, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP8SN.
