Rohde & Schwarz NRPC33
| Attribute | Value |
|---|---|
| Frequency Range | DC to 33 GHz |
| Connector | 3.5 mm female (test port) |
| Power Range | 10 µW to 100 mW (-20 to +20 dBm) |
| Maximum Power | 0.5 W (+27 dBm) CW, 40 W peak (1 µs) |
| Function | power sensor calibration kit, thermocouple sensor with power splitter (power standard) |
| Interfaces | USB, or via NRX (GPIB, LAN, USB) |
| Dimensions | 67 × 47 × 166 mm (power standard); case 467 × 242 × 84 mm |
| Weight | 1.9 kg (power standard); 4.2 kg (case with kit) |

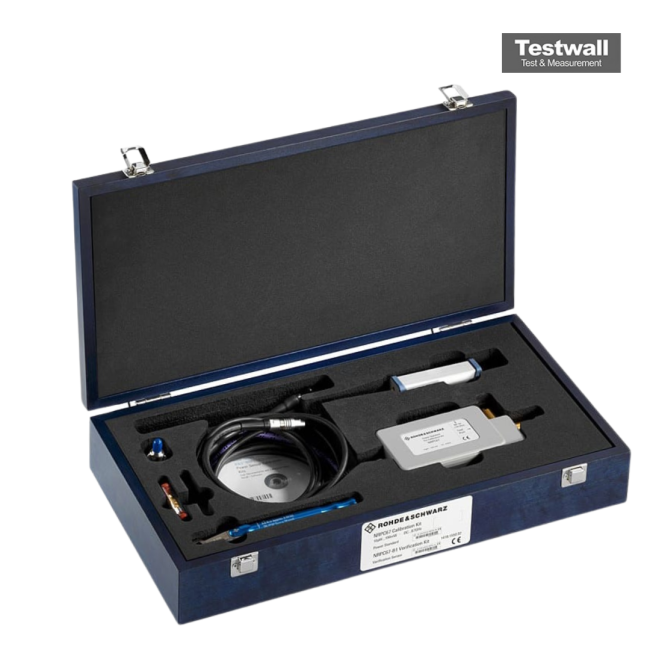

Rohde & Schwarz NRPC33 Calibration Kit, 3.5 mm, DC to 33 GHz; 10 uW to 100 mW Options:
- NRPC33 - B1 - Verification Kit for R&S NRPC33
The Rohde and Schwarz NRPC33 Calibration Kit features a 3.5 mm connector and supports a frequency range from DC to 33 GHz, ensuring precise calibration from -20 dBm to +20 dBm. Designed for use with R&S NRP and FSH power sensors, it includes DAkkS calibration compliant with ISO 17025 and ISO 9000 standards.
Ideal for verifying high-accuracy power sensor measurements, the NRPC33 ensures minimal calibration uncertainty and is designed for program-controlled use to maximize efficiency and throughput.
Testwall can supply the used Rohde and Schwarz NRPC33, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRPC33.
