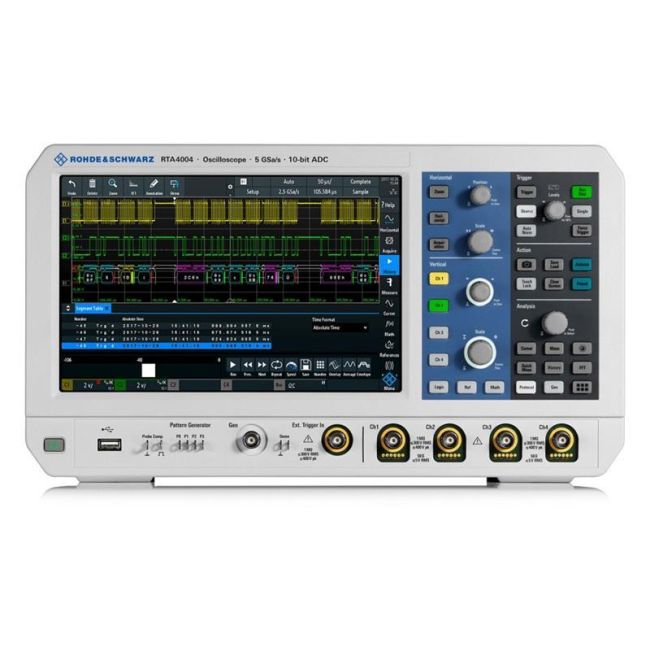

Rohde & Schwarz RTA4000
10-bit ADC plus class-leading noise and memory depth
200 MHz to 1 GHz (model dependent) Bandwidth
4 analog channels Number of Channels
Up to 5 Gsample/s Sample Rate
Up to 200 Mpoints (with memory option) Memory Depth
10-bit ADC (up to 12-bit in high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz to 1 GHz (model dependent) |
| Number of Channels | 4 analog channels |
| Sample Rate | Up to 5 Gsample/s |
| Memory Depth | Up to 200 Mpoints (with memory option) |
| Vertical Resolution | 10-bit ADC (up to 12-bit in high-resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Digital Channels | 16 digital channels (MSO option) |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), HDMI output |
| Integrated Analysis Tools | FFT, protocol analysis (I2C, SPI, UART, CAN, LIN), mask testing, and waveform math |
Rohde & Schwarz RTA4000 Options:
- RTA4000 - RTA-B243 - Upgrade of R&S®RTA4004 oscilloscopes to 350 MHz bandwidth
- RTA4000 - RTA-B245 - Upgrade of R&S®RTA4004 oscilloscopes to 500 MHz bandwidth
- RTA4000 - RTA-B2410 - Upgrade of R&S®RTA4004 oscilloscopes to 1 GHz bandwidth
- RTA4000 - RTA-B1 - Mixed signal upgrade for non-MSO models, 400 MHz (additional 16 logic channels)
- RTA4000 - RTA-B6 - Arbitrary waveform and 4-bit pattern generator
- RTA4000 - RTA-K1 - I2C/SPI serial triggering and decoding
- RTA4000 - RTA-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTA4000 - RTA-K3 - CAN/LIN serial triggering and decoding
- RTA4000 - RTA-K5 - Audio (I2S, LJ, RJ, TDM) triggering and decoding
- RTA4000 - RTA-K6 - MIL-STD-1553 serial triggering and decoding
- RTA4000 - RTA-K7 - ARINC 429 serial triggering and decoding
- RTA4000 - RTA-K18 - Spectrum analysis and spectrogram
- RTA4000 - RTA-K31 - Power analysis
- RTA4000 - RTA-K36 - Frequency response analysis (Bode plot)
- RTA4000 - RTA-PK1 - Application bundle (RTA-K1, RTA-K2, RTA-K3, RTA-K5, RTA-K6, RTA-K7, RTA-K18, RTA-K31, RTA-K36, RTA-B6)
| Model | RTA4000 |
|---|
The Rohde & Schwarz RTA4000 delivers bandwidth from 200 MHz to 1 GHz, with up to 5 Gsample/s sampling rate and 1 Gsample memory depth. Featuring a 10-bit ADC and a 10.1" capacitive touchscreen, it ensures precise signal analysis and easy interaction for demanding applications.
Ideal for embedded design, power analysis, and signal integrity debugging, the RTA4000 combines performance and functionality in one compact platform.
Testwall can supply the used Rohde & Schwarz RTA4000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTA4000.
