Tektronix

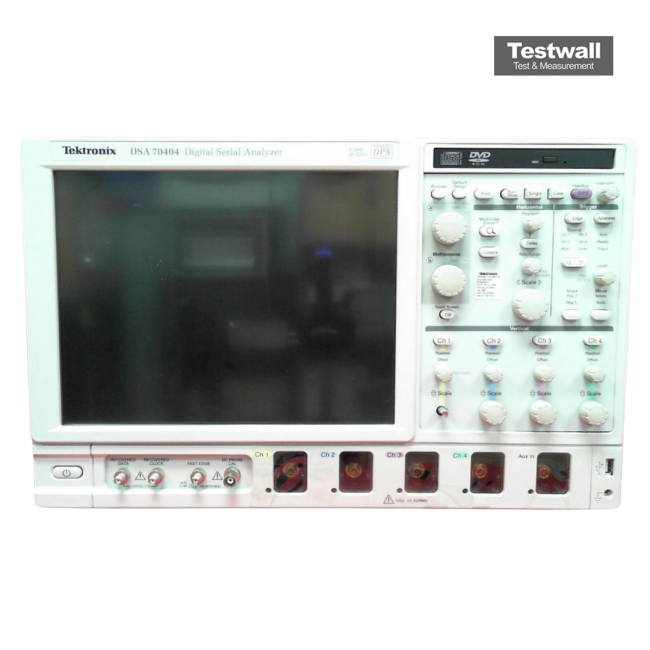

Tektronix DSA70404B
4 Ch 4 GHz Digital Signal Analyzer
4 GHz Bandwidth
25 GS/s on all 4 channels simultaneously Sample Rate
4 Number of Channels
Up to 250 Megapoints per channel Record Length
8-bit (up to 11-bit with Hi-Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 25 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Megapoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 116 ps (10% to 90%) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch (389 mm) XGA color display |
| Operating System | Windows 7 Professional (64-bit) |
Tektronix DSA70404B Options:
- DSA70404B - 2XL - 20 MS/Ch Record Length (Standard on DSA70000B)
- DSA70404B - 5XL - 50 MS/Ch Record Length
- DSA70404B - 10XL - 125 MS/Ch Record Length
- DSA70404B - ASM - Advanced Event Search and Mark (Standard on DSA70000B)
- DSA70404B - LT - Waveform Limit Testing
- DSA70404B - MTH - Mask testing for Serial Standards up to 6 Gb/s. Includes hardware clock recovery for up to 6.25 Gb/s (Standard on DSA70000B)
- DSA70404B - PTH - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 3.125 Gb/s. Includes hardware clock recovery and pattern lock triggering (Standard on DSA70000B)
- DSA70404B - STU - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals up to 6.25 Gb/s
- DSA70404B - D-PHY - MIPI D-PHY Essentials – Characterization and Compliance Test Solution
- DSA70404B - DDRA - DDR Memory Bus Analysis
- DSA70404B - DJA - DPOJET Jitter and Eye Diagram Analysis (Standard on DSA70000B)
- DSA70404B - DSPT - DisplayPort Compliance Test Solution
- DSA70404B - DVI - DVI Compliance Test Solution
- DSA70404B - ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Available through the programmable interface only)
- DSA70404B - ET3 - Ethernet Compliance Test Software
- DSA70404B - HEAC - HEAC Automated Solution
- DSA70404B - HT3 - HDMI Compliance Test Software
- DSA70404B - HT3DS - HDMI Direct Synthesis for HDMI 1.4
- DSA70404B - IBA - InfiniBand Compliance Module for RT-Eye Analysis Software
- DSA70404B - PCE - PCI Express Analysis Software
- DSA70404B - PWR - Power Measurement and Analysis Software
- DSA70404B - RTE - RT-Eye Serial Data Compliance and Analysis Software
- DSA70404B - SLA - Serial Data Link Analysis Advanced (with Equalization)
- DSA70404B - SLE - Serial Data Link Analysis Essentials (no Equalization)
- DSA70404B - SST - SATA and SAS Analysis Software Module for RT-Eye Analysis Software
- DSA70404B - SVE - SignalVu Essentials – Vector Signal Analysis Software
- DSA70404B - SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- DSA70404B - SVP - Advanced Signal Analysis including pulse measurements (Requires Opt. SVE)
- DSA70404B - SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- DSA70404B - USB - USB 2.0 Compliance Test Software
- DSA70404B - USB3 - USB 3.0 Compliance and Analysis Software
- DSA70404B - UWB - Ultra-Wideband Spectral Analysis (includes WiMedia Alliance PHY interf. testing)
- DSA70404B - UWBE - Ultra-Wideband Spectral Analysis Essentials
- DSA70404B - XGbT - 10GBASE-T Automated Solution
- DSA70404B - TEKEXP - TekExpress Automation Framework
- DSA70404B - SATA-TSG - SATA PHY/TSG/OOB Transmitter Tests for TekExpress
- DSA70404B - SATA-RSG - SATA RSG/RMT Receiver Tests for TekExpress
- DSA70404B - SATA-RXTX - SATA Rx/Tx Channel Tests for TekExpress
- DSA70404B - SATA-DHB - SATA TekExpress SW Bundle (TSG, RSG, RXTX for Hosts or Devices)
- DSA70404B - SATA-SI - SATA SI Cable Tests for TekExpress
- DSA70404B - USB-RMT - TekExpress Automated USB 3.0 Receiver Solution
- DSA70404B - USB-TX - TekExpress Automated USB 3.0 Solution
- DSA70404B - L0 - English manual
- DSA70404B - L1 - French manual
- DSA70404B - L3 - German manual
- DSA70404B - L5 - Japanese manual
- DSA70404B - L7 - Simple Chinese manual
- DSA70404B - L8 - Standard Chinese manual
- DSA70404B - L9 - Korean manual
- DSA70404B - L10 - Russian manual
- DSA70404B - L99 - No manual
- DSA70404B - A0 - US plug, 115 V, 60 Hz
- DSA70404B - A1 - Euro plug, 220 V, 50 Hz
- DSA70404B - A2 - UK plug, 240 V, 50 Hz
- DSA70404B - A3 - Australian plug, 240 V, 50 Hz
- DSA70404B - A5 - Swiss plug, 220 V, 50 Hz
- DSA70404B - A6 - Japanese plug, 100 V, 110/120 V, 60 Hz
- DSA70404B - A10 - China plug, 50 Hz
- DSA70404B - A11 - India plug, 50 Hz
- DSA70404B - A99 - No power cord
- DSA70404B - CA1 - Single calibration or functional verification
- DSA70404B - C3 - Calibration Service 3 Years
- DSA70404B - C5 - Calibration Service 5 Years
- DSA70404B - D1 - Calibration Data Report
- DSA70404B - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DSA70404B - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DSA70404B - R3 - Repair Service 3 Years
- DSA70404B - R5 - Repair Service 5 Years
- DSA70404B - IN - Product Installation Service
- DSA70404B - IF - Upgrade Installation Service
| Model | DSA70404B |
|---|
The Tektronix DSA70404B offers 4 GHz bandwidth across four channels, with real-time sampling rates up to 50 GS/s and a record length of 250 Megasamples. It provides outstanding signal fidelity, rapid waveform capture exceeding 300,000 wfms/s, and advanced triggering capabilities including 5 Gbps serial pattern trigger. MultiView Zoom™, SDLA support, and P7500 TriMode probing ensure complete signal visibility and detailed analysis.
Ideal for high-speed serial data applications, the DSA70404B supports comprehensive signal diagnostics and debugging, with hardware-accelerated triggers and pattern matching functionality.
Testwall can supply the used Tektronix DSA70404B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70404B.
