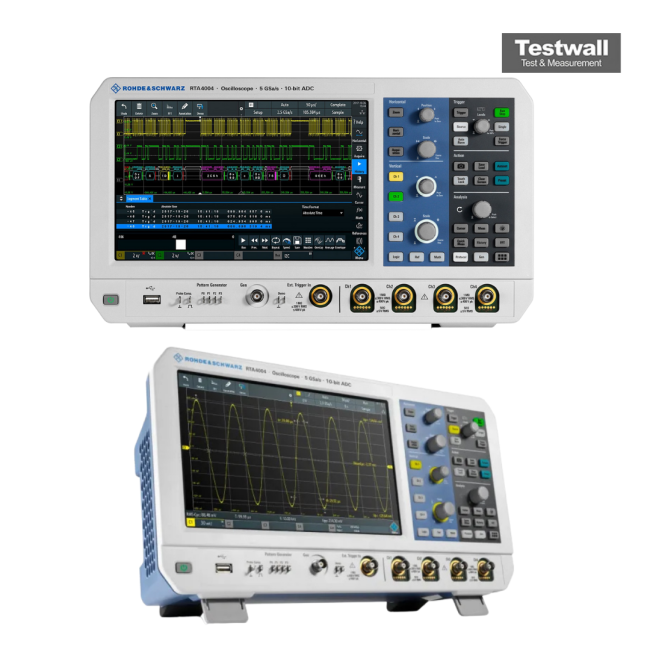

Rohde & Schwarz RTA4004
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 Gsample/s |
| Memory Depth | 20 Mpoints (standard), 100 Mpoints (optional) |
| Vertical Resolution | 10-bit ADC (up to 12-bit with high resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 50,000 waveforms/second |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ || 13 pF / 50 Ω |
| Connectivity & Interfaces | USB, LAN (LXI), optional GPIB; supports SCPI remote control |
Rohde & Schwarz RTA4004 Options:
- RTA4004 - RTA-B243 - Upgrade of R&S®RTA4004 oscilloscopes to 350 MHz bandwidth
- RTA4004 - RTA-B245 - Upgrade of R&S®RTA4004 oscilloscopes to 500 MHz bandwidth
- RTA4004 - RTA-B2410 - Upgrade of R&S®RTA4004 oscilloscopes to 1 GHz bandwidth
- RTA4004 - RTA-B1 - Mixed signal upgrade for non-MSO models, 400 MHz
- RTA4004 - RTA-B6 - Arbitrary waveform and 4-bit pattern generator
- RTA4004 - RTA-K1 - I2C/SPI serial triggering and decoding
- RTA4004 - RTA-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTA4004 - RTA-K3 - CAN/LIN serial triggering and decoding
- RTA4004 - RTA-K5 - Audio (I2S, LJ, RJ, TDM) triggering and decoding
- RTA4004 - RTA-K6 - MIL-STD-1553 serial triggering and decoding
- RTA4004 - RTA-K7 - ARINC 429 serial triggering and decoding
- RTA4004 - RTA-K18 - Spectrum analysis and spectrogram
- RTA4004 - RTA-K31 - Power analysis
- RTA4004 - RTA-K36 - Frequency response analysis (Bode plot)
- RTA4004 - RTA-PK1 - Application bundle (R&S®RTA-K1, K2, K3, K5, K6, K7, K18, K31, K36, B6)
| Model | RTA4004 |
|---|
The Rohde & Schwarz RTA4004 is a 4-channel, 200 MHz digital oscilloscope equipped with a 10-bit ADC and offers up to 16-bit resolution. It supports up to 5 GSa/s and deep memory with 100 Msample per channel or 200 Msample interleaved. Users benefit from full bandwidth at 500 μV/div without software magnification, ensuring class-leading low noise and precise measurements. The unit includes a 10.1” high-resolution capacitive touchscreen and supports bandwidth upgrades and mixed signal options via software keys.
This oscilloscope is ideal for applications requiring high-resolution signal analysis, low noise levels, and extended memory. Its standard segmented memory, history function, and advanced triggering make it versatile for various R&D and testing tasks.
Testwall can supply the used Rohde & Schwarz RTA4004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTA4004.
