Rohde & Schwarz RTC1002
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GSa/s |
| Memory Depth | 2 Mpts |
| Vertical Resolution | 8-bit |
| Display | 6.5-inch WVGA color display (800 x 480 pixels) |
| Timebase Range | 2 ns/div to 50 s/div |
| Input Impedance | 1 MΩ || 13 pF |
| Waveform Update Rate | Up to 5,000 waveforms/second |
| Integrated Functions | Integrated logic analyzer (optional), protocol analysis, and arbitrary waveform generator (optional) |
Rohde & Schwarz RTC1002 Options:
- RTC1002 - RTC-B220 - Upgrade of R&S®RTC1002 to 70 MHz bandwidth
- RTC1002 - RTC-B221 - Upgrade of R&S®RTC1002 to 100 MHz bandwidth
- RTC1002 - RTC-B222 - Upgrade of R&S®RTC1002 to 200 MHz bandwidth
- RTC1002 - RTC-B223 - Upgrade of R&S®RTC1002 to 300 MHz bandwidth
- RTC1002 - RTC-B1 - Mixed signal upgrade for non-MSO models, 300 MHz
- RTC1002 - RTC-B6 - Waveform generator
- RTC1002 - RTC-K1 - I²C/SPI serial triggering and decoding
- RTC1002 - RTC-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTC1002 - RTC-K3 - CAN/LIN serial triggering and decoding
- RTC1002 - RTC-PK1 - Application bundle: R&S®RTC-K1, R&S®RTC-K2, R&S®RTC-K3, R&S®RTC-B6
| Model | RTC1002 |
|---|

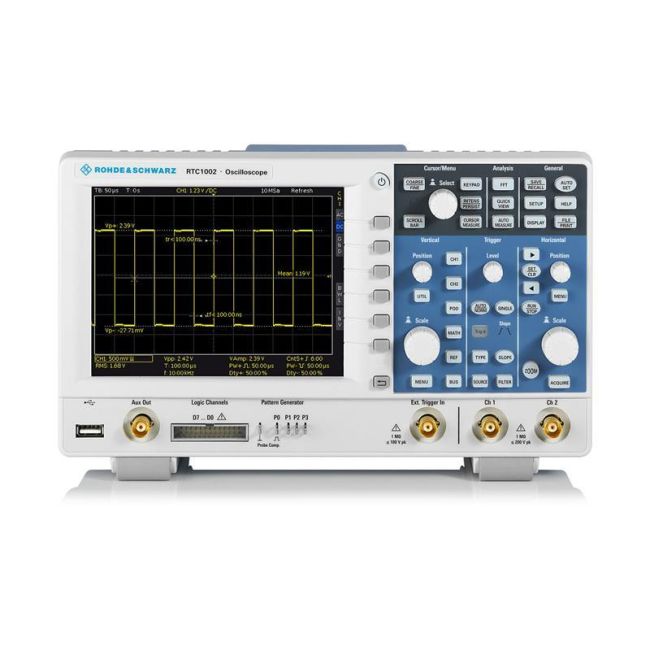

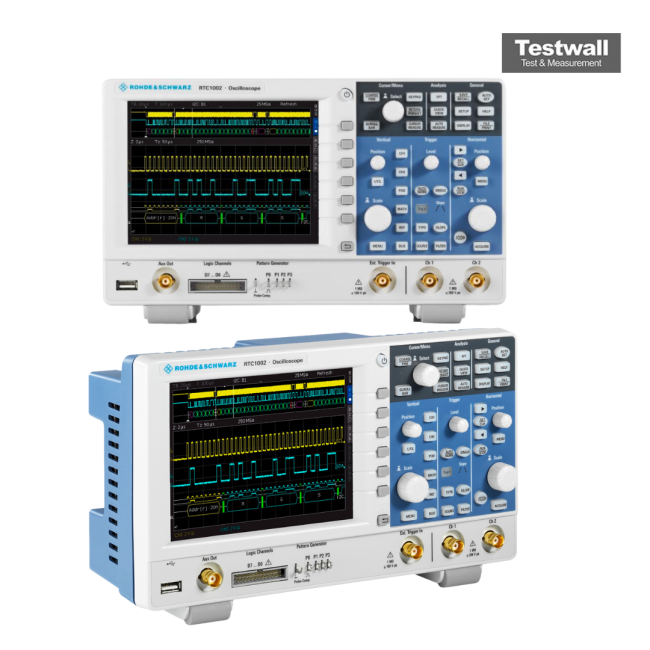

The Rohde & Schwarz RTC1002 is a 2-channel, 50 MHz digital oscilloscope featuring an 8-bit ADC, up to 2 GSa/s sampling rate, and 2 MSa memory depth. It delivers low-noise precision through advanced A/D converters and robust hardware-based acquisition for accurate results.
Designed for education, R&D, and production testing, the RTC1002 offers software-licensed options such as bandwidth upgrades and serial bus analysis, making it a flexible tool for evolving measurement needs.
Testwall can supply the used Rohde & Schwarz RTC1002, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTC1002.
