Rohde & Schwarz RTE1022
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 5 Gsample/s |
| Vertical Resolution | 10-bit ADC (up to 16-bit with high-resolution mode) |
| Memory Depth | 50 Mpoints per channel |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Trigger Types | Edge, Glitch, Width, Runt, Window, Timeout, Interval, Slew Rate, Data2Clock, Pattern, Serial Bus |
| Connectivity / Interfaces | USB, LAN (LXI), HDMI, Auxiliary output |
Rohde & Schwarz RTE1022 Options:
- RTE1022 - RTE-B1 - Mixed Signal Option, 400 MHz, 5 Gsample/s, 16 channels, 100 Msample/channel
- RTE1022 - RTE-B10 - GPIB Interface
- RTE1022 - RTE-B18 - Replacement SSD Hard Disk, incl. firmware
- RTE1022 - RTE-B19 - Replacement Hard Disk, incl. firmware
- RTE1022 - RTE-B101 - Memory Upgrade, 20 Msample per channel
- RTE1022 - RTE-B102 - Memory Upgrade, 50 Msample per channel
- RTE1022 - RTE-B200 - Upgrade of RTE1022/1024 to 350 MHz bandwidth
- RTE1022 - RTE-B201 - Upgrade of RTE1022/1024 to 500 MHz bandwidth
- RTE1022 - RTE-B202 - Upgrade of RTE1022/1024 to 1 GHz bandwidth
- RTE1022 - RTE-B203 - Upgrade of RTE1022/1024 to 1.5 GHz bandwidth
- RTE1022 - RTE-B204 - Upgrade of RTE1022/1024 to 2 GHz bandwidth
- RTE1022 - RTE-K1 - I2C/SPI Serial Triggering and Decoding
- RTE1022 - RTE-K2 - UART/RS-232/RS-422/RS-485 Serial Triggering and Decoding
- RTE1022 - RTE-K3 - CAN/LIN Serial Triggering and Decoding
- RTE1022 - RTE-K4 - FlexRay™ Serial Triggering and Decoding
- RTE1022 - RTE-K5 - I²S Serial Triggering and Decoding
- RTE1022 - RTE-K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTE1022 - RTE-K7 - ARINC 429 Triggering and Decoding
- RTE1022 - RTE-K8 - Ethernet Serial Decoding
- RTE1022 - RTE-K9 - CAN-FD Serial Triggering and Decoding
- RTE1022 - RTE-K10 - SENT Serial Triggering and Decoding
- RTE1022 - RTE-K17 - High Definition Mode, vertical resolution up to 16 bit
- RTE1022 - RTE-K18 - Spectrum Analysis
- RTE1022 - RTE-K31 - Power Analysis
- RTE1022 - RTE-K50 - Manchester and NRZ Serial Triggering and Decoding
- RTE1022 - RTE-K55 - MDIO Serial Triggering and Decoding
- RTE1022 - RTE-K60 - USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
- RTE1022 - RTE-K65 - SpaceWire Serial Triggering and Decoding
| Model | RTE1022 |
|---|

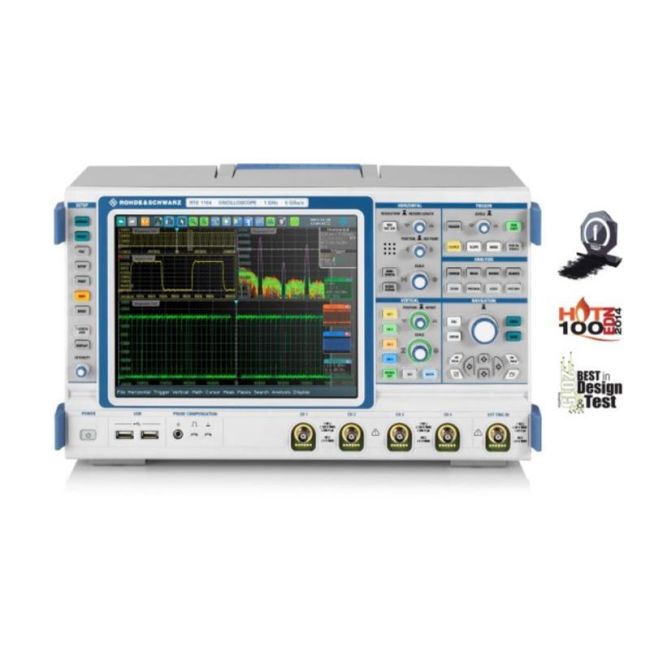

The Rohde & Schwarz RTE1022 is a high‑precision 2‑channel digital oscilloscope featuring 200 MHz bandwidth and a per‑channel sampling rate of 5 GSa/s, supported by a single-core A/D converter delivering up to 16‑bit vertical resolution. Each channel offers 50 MSa memory depth (or 100 MSa in single‑channel mode), along with two 500 MHz passive probes for full measurement bandwidth even at 500 µV/div.
Designed for effective signal fault detection, it combines high time resolution with deep memory and a waveform update rate of 1 million waveforms/sec, plus accurate digital triggering—ideal for detailed, high-speed diagnostics.
Testwall can supply the used Rohde & Schwarz RTE1022, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTE1022.
