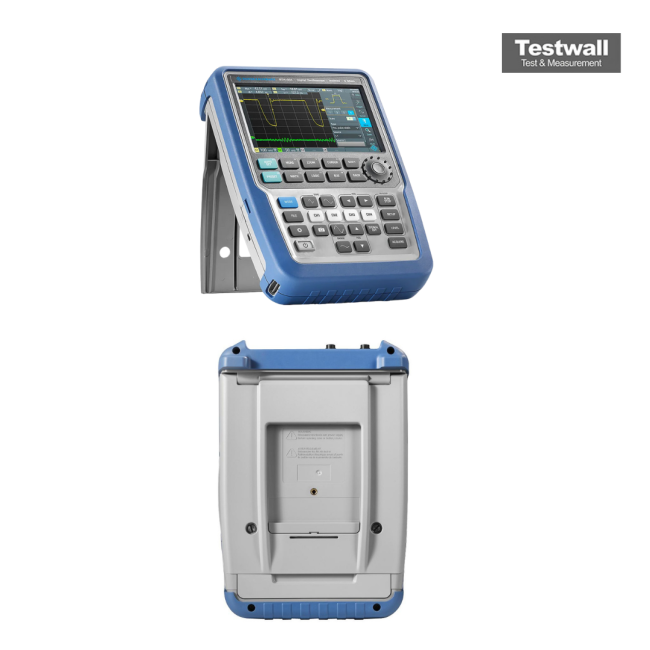

Rohde & Schwarz RTH1002 + RTH-B222 Handheld Oscilloscope, 200 MHz, 2 Channels
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 1.25 GSa/s |
| Memory Depth | 10 Mpts per channel |
| Vertical Resolution | 8 bits |
| Display | 5.7-inch color touchscreen, 640 x 480 pixels |
| Battery Operation | Up to 3 hours with integrated rechargeable lithium-ion battery (RTH-B222 option included) |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Time Base Range | 1 ns/div to 50 s/div |
| Protection Rating | IP51 dust and drip-proof, CAT I 300 V / CAT II 100 V rated |
Rohde & Schwarz RTH1002 + RTH-B222 Handheld Oscilloscope, 200 MHz, 2 Channels Options:
- RTH1002 - RTH-B1 - Mixed signal option, additional 8 logic channels, 250 MHz
- RTH1002 - RTH-B221 - Upgrade of R&S®RTH1002 oscilloscopes to 100 MHz bandwidth
- RTH1002 - RTH-B222 - Upgrade of R&S®RTH1002 oscilloscopes to 200 MHz bandwidth
- RTH1002 - RTH-B223 - Upgrade of R&S®RTH1002 oscilloscopes to 350 MHz bandwidth
- RTH1002 - RTH-B224 - Upgrade of R&S®RTH1002 oscilloscopes to 500 MHz bandwidth
- RTH1002 - RTH-K1 - I2C/SPI serial triggering and decoding
- RTH1002 - RTH-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTH1002 - RTH-K3 - CAN/LIN serial triggering and decoding
- RTH1002 - RTH-K9 - CAN-FD serial triggering and decoding (requires active RTH-K3 option as basis)
- RTH1002 - RTH-K10 - SENT serial triggering and decoding
- RTH1002 - RTH-K15 - History and segmented memory
- RTH1002 - RTH-K18 - Spectrum analysis
- RTH1002 - RTH-K19 - Advanced triggering
- RTH1002 - RTH-K33 - Frequency counter
- RTH1002 - RTH-K34 - Harmonic analysis
- RTH1002 - RTH-K200 - Wireless LAN, all countries except US and Canada
- RTH1002 - RTH-K200US - Wireless LAN, for US and Canada only
- RTH1002 - RTH-K201 - Web interface remote control
| Model | RTH1002 |
|---|
The Rohde and Schwarz RTH1002 with RTH-B222 is a high-performance handheld oscilloscope offering bandwidths from 60 MHz to 500 MHz, a sample rate up to 5 Gsample/s, and a memory depth of up to 50 Msample in segmented mode. It features 10-bit ADC resolution and isolated CAT IV 600 V / CAT III 1000 V input channels, ideal for complex signal analysis.
It integrates a multimeter and supports multiple analysis modes including logic, protocol (I²C/SPI, UART, CAN/LIN, CAN-FD, SENT), spectrum, harmonics, and frequency analysis—perfect for both field and lab use.
Testwall can supply the used Rohde and Schwarz RTH1002 with RTH-B222, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTH1002 with RTH-B222.
