Tektronix TDS360
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Sample Rate | 1 GS/s |
| Number of Channels | 2 |
| Record Length | 5,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | Liquid Crystal Display (LCD) |
| Trigger Modes | Edge, Video, Pulse Width |
Tektronix TDS360 Options:
- TDS360 - Opt. 14 - I/O Interface (GPIB, RS-232, and Centronics-type parallel printer port)
- TDS360 - Opt. A1 - Universal Euro 220 V, 50 Hz
- TDS360 - Opt. A2 - United Kingdom 240 V, 50 Hz
- TDS360 - Opt. A3 - Australia 240 V, 50 Hz
- TDS360 - Opt. A4 - North America 240 V, 60 Hz
- TDS360 - Opt. A5 - Switzerland 220 V, 50 Hz
- TDS360 - Opt. STD - English User Manual (070-9459-00)
- TDS360 - Opt. L1 - French User Manual (070-9431-00)
- TDS360 - Opt. L3 - German User Manual (070-9432-00)
- TDS360 - Opt. L4 - Spanish User Manual (070-9433-00)
- TDS360 - Opt. L5 - Japanese User Manual (070-9440-00)
- TDS360 - Opt. L7 - Simple Chinese User Manual (070-9437-00)
- TDS360 - Opt. L8 - Standard Chinese User Manual (070-9438-00)
- TDS360 - Opt. L9 - Korean User Manual (070-9439-00)
| Model | TDS360 |
|---|

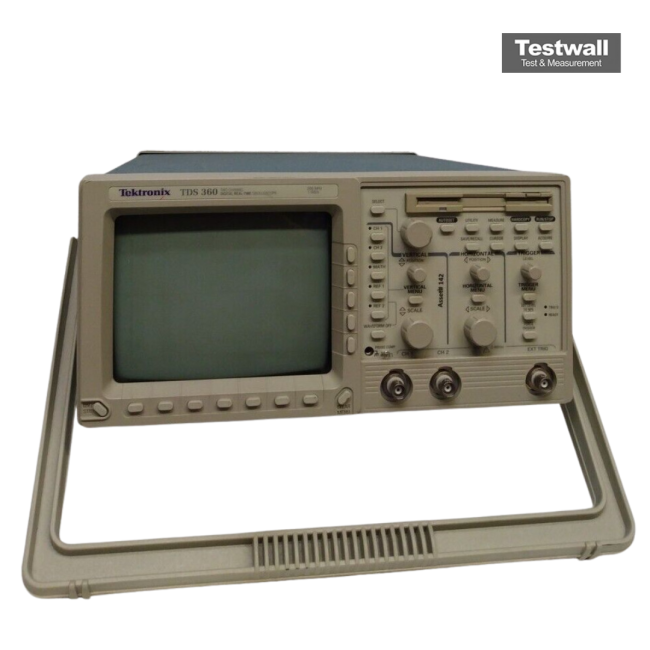

The Tektronix TDS360 is a dual-channel digital oscilloscope offering 200 MHz bandwidth and 1 GS/s sampling per channel. It provides accurate real-time waveform capture and high-resolution display with 2% vertical accuracy and FFT analysis. It supports advanced triggering, display modes like Vector Accumulate, and includes a 3.5-inch floppy drive for data storage.
Ideal for production testing, troubleshooting, and design applications, it offers envelope, average, and peak detect acquisition modes with a user-friendly interface for analog-like simplicity and digital efficiency.
Testwall can supply the used Tektronix TDS360, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS360.
